Operate Rear EH Hitch Fender Switch—Cab Tractors

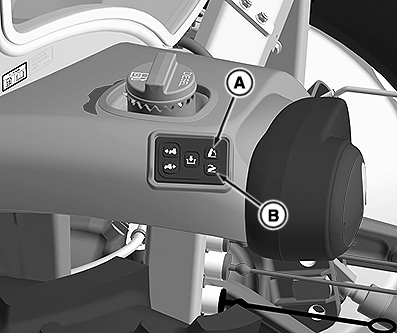

LV29051-UN-27JUL17

A - External Raise Switch

B - External Lower Switch

CAUTION: Put machine in Park before using fender switches. Implement moves when fender switches are used. Stay clear of interference points during operation.

NOTE: When remote hitch switches are pressed, the hitch moves slowly but increases speed the longer hitch switch is held.

1. Implement is raised when top switch (A) is held.

2. Implement is lowered when bottom switch (B) is held.

3. Once external position control switch is activated, the hitch will not respond to movements of the position control lever.

   To reactivate the lever, place lever at a position that corresponds with hitch position and then actuate quick raise/lower buttons.
