Manually Lower EH Hitch—Cab Tractors

LV29052-UN-27JUL17

LV29053-UN-27JUL17

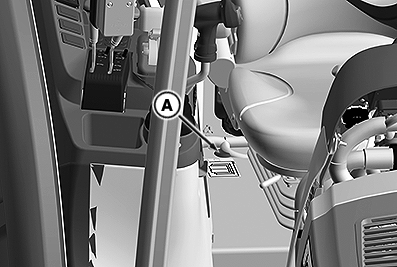

A - Plug

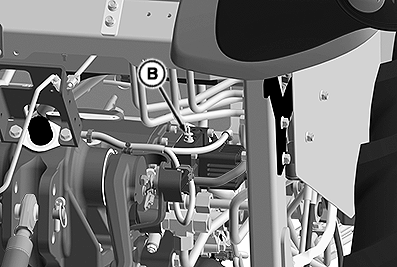

B - Stepper Motor Override Switch

CAUTION: Perform procedure from operator's station to avoid possible injury from rear hitch-mounted implements.

IMPORTANT: Hitch will manually lower without engine or electrical power.

1. Turn the key to the off position.

2. From the operator’s seat, remove plug (A).

3. Insert screw driver or similar tool through cab opening.

4. Press stepper motor override switch (B) to lower hitch.
