Battery Isolation / Disconnect

LV29057-UN-31JUL17

LV26034-UN-26JUL17

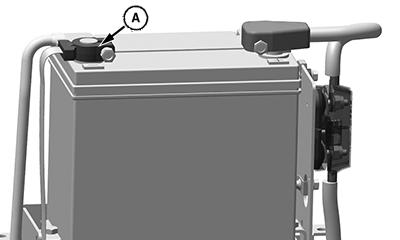

A - Black Negative Cable

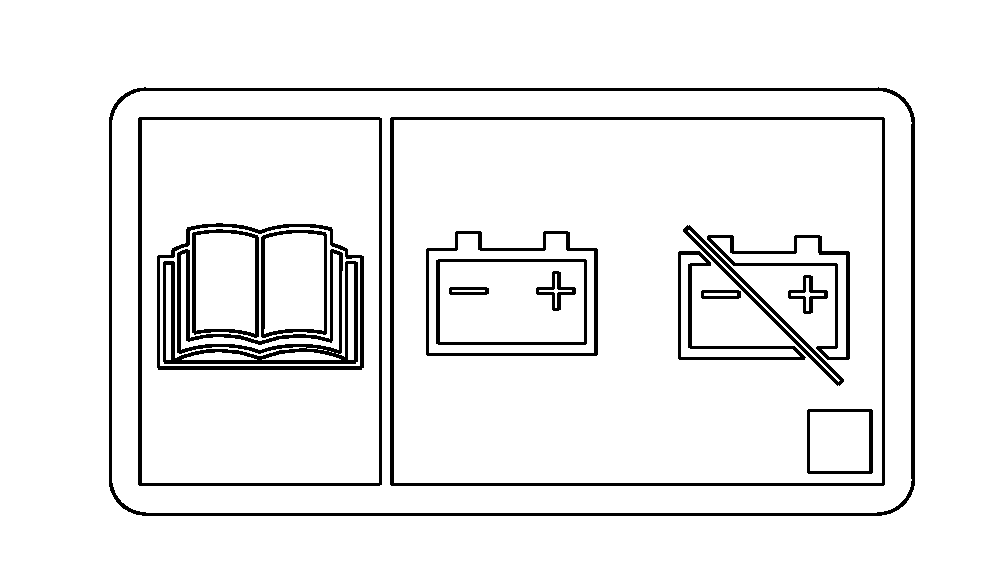

Disconnect the battery before storing the machine. Read your operator’s manual before proceeding.

1. Use a 13mm wrench to disconnect battery cable from terminal.
2. Disconnect black negative (-) cable (A) from battery terminal.
3. Disconnect red positive (+) cable from battery terminal.
