Pushing or Towing Machine

CAUTION: Avoid injury! Never tow machine faster than 16 km/h (10 mph). If possible, have someone operate steering and brakes of towed tractor.

IMPORTANT: Avoid damage! Push or tow machine for short distances only.

  1. Push the PTO switch to the off position.

  2. Disengage the differential lock.

  3. Disengage park brake.

  4. Move transmission to neutral position:

    • PRT—Depress clutch pedal completely and move the transmission gear and range shift levers to the N (neutral) position. Move the reverser lever to the N (neutral) position.
    • HST—Move the range shift lever to the N (neutral) position.

  5. Disengage the MFWD.


Tow Points

Below are a list of the tow points.

  • LV29371
    LV29371-UN-06SEP17

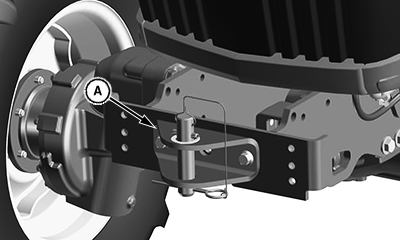

    Front Tow Hitch

    LV29372
    LV29372-UN-06SEP17

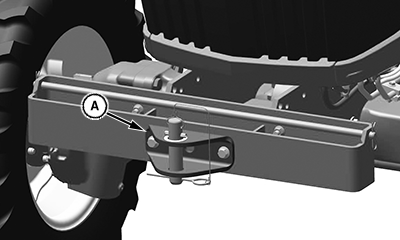

    Front Tow Hitch with Weight Bracket

    Front Tow Point—Use the front tow hitch (A).

  • LV29373
    LV29373-UN-06SEP17

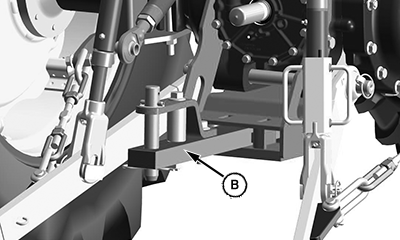

    Rear Drawbar—Tow Hitch

    Rear Tow Point—Use the rear drawbar / tow hitch (B).

UP00731,000043F-19-20170905
