Check Front Hitch Gear Case Oil

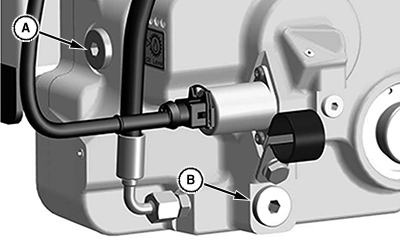

  1. LV29988
    LV29988-UN-09MAR18

    Front Hitch Gear Case

    Remove oil fill plug (A).


  2. Oil level is to be level with the bottom of the oil fill hole.

  3. Add oil, if necessary.

  4. Install oil fill plug (A).

  5. To drain oil, remove the oil drain plug (B).

  6. Replace oil drain plug (B) before filling the gear case.

  7. Fill gear case to specification.

UP00731,000053F-19-20190926
