Use Optional Front Weights

LV30101-UN-12JUN18

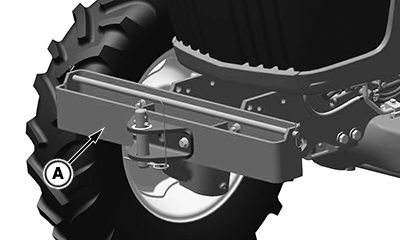

A - Front Weight Bracket

IMPORTANT: Avoid Damage! Do not install weights on the front bumper plate. Damage to the front grille can occur. Use optional bolt-on weight bracket for front weights.

Quik-Tatch™ weights and attaching hardware are available at your John Deere dealer. Each weight is 19 kg (42 lb) or 32 kg (70 lb).

An optional front weight bracket extension kit (A) is available at your John Deere dealer. This optional front weight bracket extension kit holds up to ten Quik-Tatch weights.
