Roll Over Protection Structure (ROPS)

CAUTION:

  • Avoid injury! Always wear seat belt when operating machine with folding roll-over protective structure (ROPS) in upright position. Do not jump from machine if machine tips.
  • If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.
  • If canopy or sunshade is attached to the ROPS structure, the weight MUST be limited to 45 kg (100 lb.) or less.

NOTE: When removing the drilled pin (B) from the ROPS, be careful not to lose the ROPS pin isolator.


ROPS

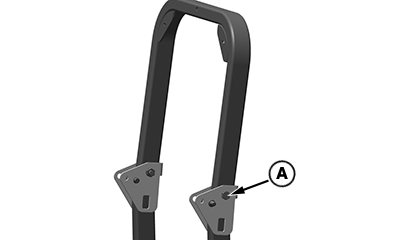

LV30295
LV30295-UN-04SEP18

A - Bolt

The ROPS on this tractor is equipped with a bolt (A) and nut to keep the structure in an upright position.


Folding ROPS (If equipped)

Lower ROPS Crossbar

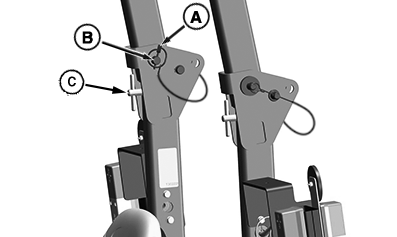

  1. LV28973
    LV28973-UN-25JUL17

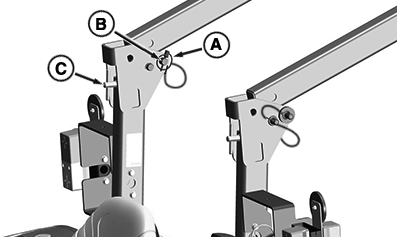

    LV28974
    LV28974-UN-25JUL17

    A - Locking Pin

    B - Drilled Pin

    C - ROPS Crossbar

    D - ROPS Pin Isolator

    E - Adjustment Screw

    Loosen the ROPS tension screw (C) on each side of the ROPS.


  2. Remove locking pin (A) and drilled pin (B) on each side of the ROPS.

  3. Install drilled pins (B) and locking pins (A) on each side of the ROPS in the rear hole.

  4. Carefully lower ROPS crossbar onto drilled pins (B).

Raise ROPS Crossbar

  1. Carefully raise ROPS crossbar to the operating position.

  2. Align crossbar bracket holes with support bracket holes on each side of the ROPS.

  3. Remove locking pins (A) and drilled pins (B) on each side of the ROPS.

  4. Install drilled pins (B) and spring locking pins (A) to lock crossbar in the raised position.

  5. Tighten the ROPS tension screw (C) on each side of the ROPS

UP00731,00005BA-19-20180821
