Using Rear PTO Switch

IMPORTANT: Use rear mounted equipment rated for 540 rpm. Do not operate rear PTO over 540 rpm mark on tachometer.

Using Rear PTO Switch (Operator on Seat)

1. Start the engine.

2. Set engine speed to 1500 rpm or less.

3.

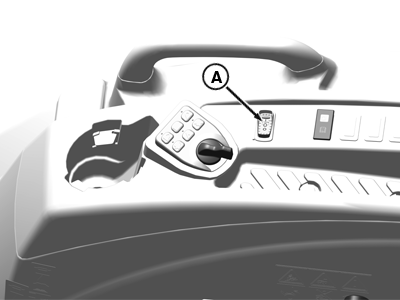

   LVP10023-UN-17SEP19

   Open Operator Station PTO Switch

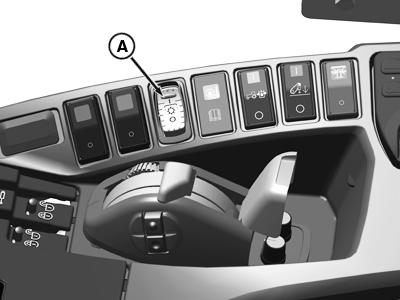

   APY20338-UN-08AUG19

   Cab PTO switch

   A - PTO Switch

   Engage the PTO (A).

---




4. Adjust the hand throttle forward to the desired speed for the implement used.

   NOTE:

   • At 2600 engine rpm the rear PTO speed is 540 rpm as indicated on the information display.
   • If the engine overheats during the PTO operation “Engine Overheat” displays on the information display and the PTO will automatically shutoff. Disengage the PTO switch, engage the park brake and the shut the engine off. Allow sufficient time for the engine to cool. Check the coolant level and add coolant if necessary. Clean debris away from the radiator cooling fins and the front grill. If the PTO does not engage after the engine has cooled, see your local John Deere Dealer for service.



Using Rear PTO Switch (Operator off Seat)

1. Sit on operator’s seat.

2. Move transmission to neutral position:

   • PowrReverser Transmission—Depress clutch pedal completely and move the transmission gear and range shift levers to the N (neutral) position. Move the reverser lever to the N (neutral) position.
   • Hydrostatic Transmission—Move the transmission range shift lever to the N (neutral) position.



3. Lock the park brake.

4. Start the engine and adjust speed to 1500 rpm.

5. Engage the PTO.

6. Get off the operator seat.

7. Push and hold the PTO switch in the engaged position for at least 2 seconds. “Hold” is shown in the display.

8. Exit the seat when “Exit Seat” is shown in the display. After exiting, “Stationary PTO Active” is shown on the display.

   NOTE: After exiting seat, if the seat switch is re-engaged (operator sits in the seat) and then disengaged (operator leaves the seat), the PTO will automatically disengage. “Operator Out of Seat” displays on the information display.

Disengaging the PTO Switch

1. Adjust engine rpm to low idle.

2. Push PTO switch down to the off position.
