Change Engine Oil and Filter

1. Run engine to warm the oil.

2. Park machine safely.

3.

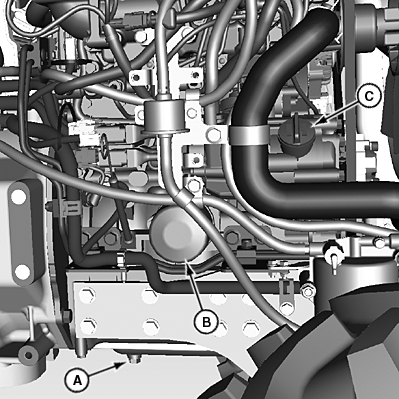

   LV17604-UN-30APR13

   3033R, 3039R Tractor

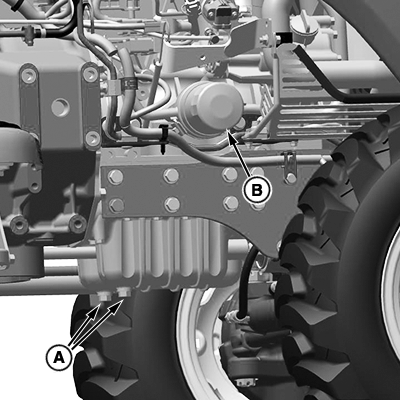

   LV30576-UN-18APR19

   3046R Tractor

   A - Oil Drain Plug

   B - Oil Filter

   C - Oil Fill Cap

   Place drain pan under the oil drain plug (A) on the underside of engine.

---




4. Remove drain plug.

5. Wipe dirt from around the oil filter (B).

6. Turn filter counterclockwise to remove.

7. Put a light coat of clean engine oil on gasket of the new filter.

8. Install replacement oil filter by turning filter clockwise until gasket contacts filter base. Tighten additional 1/2 turn.

9. Install drain plug. Do not overtighten.

10. Remove oil fill cap (C).

11. Fill engine oil to specification.

12. Install oil fill cap.

13. Start and run engine at idle to check for leaks.

14. Stop engine. Fix any leaks before operating.

15. Check engine oil level. Add oil if necessary.
