Raising and Lowering Roll-Over Protective Structure (ROPS)

CAUTION: Avoid injury! Always wear seat belt when operating machine with folding roll-over protective structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

CAUTION: If canopy or sunshade is attached to the ROPS structure, the weight MUST be limited to 45 kg (100 lb.) or less.

NOTE: When removing drilled pin (B) from the ROPS be careful not to loose ROPS pin isolator(D).

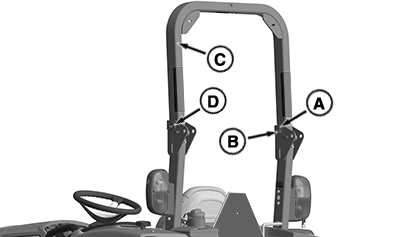

LV28675-UN-14JUN17

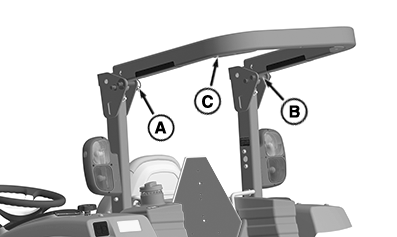

LV28717-UN-14JUN17

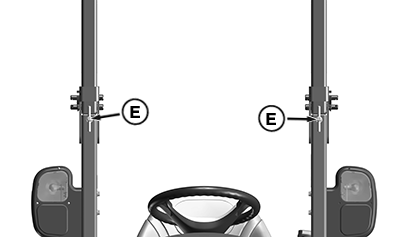

LV28718-UN-14JUN17

A - Spring Locking Pin

B - Drilled Pin

C - ROPS Crossbar

D - ROPS Pin Isolator

E - Adjustment Screw

Lowering ROPS Crossbar

1. Loosen the adjustment screw (E) on each side of the ROPS

2. Remove spring locking pin (A) and drilled pin (B) on each side of the ROPS.

3. Install drilled pins (B) and spring locking pins (A) on each side of the ROPS in the rear hole.

4. Carefully lower ROPS crossbar (C) onto drilled pins (B).

Raising ROPS Crossbar

1. Carefully raise ROPS crossbar (C) to the operating position.

2. Align crossbar bracket holes with support bracket holes on each side of the ROPS.

3. Remove spring locking pins (A) and drilled pins (B) on each side of the ROPS.

4. Install drilled pins (B) and spring locking pins (A) to lock crossbar (C) in the raised position.

5. Retighten the adjustment screw (E) on each side of the ROPS
