Instrument Cluster

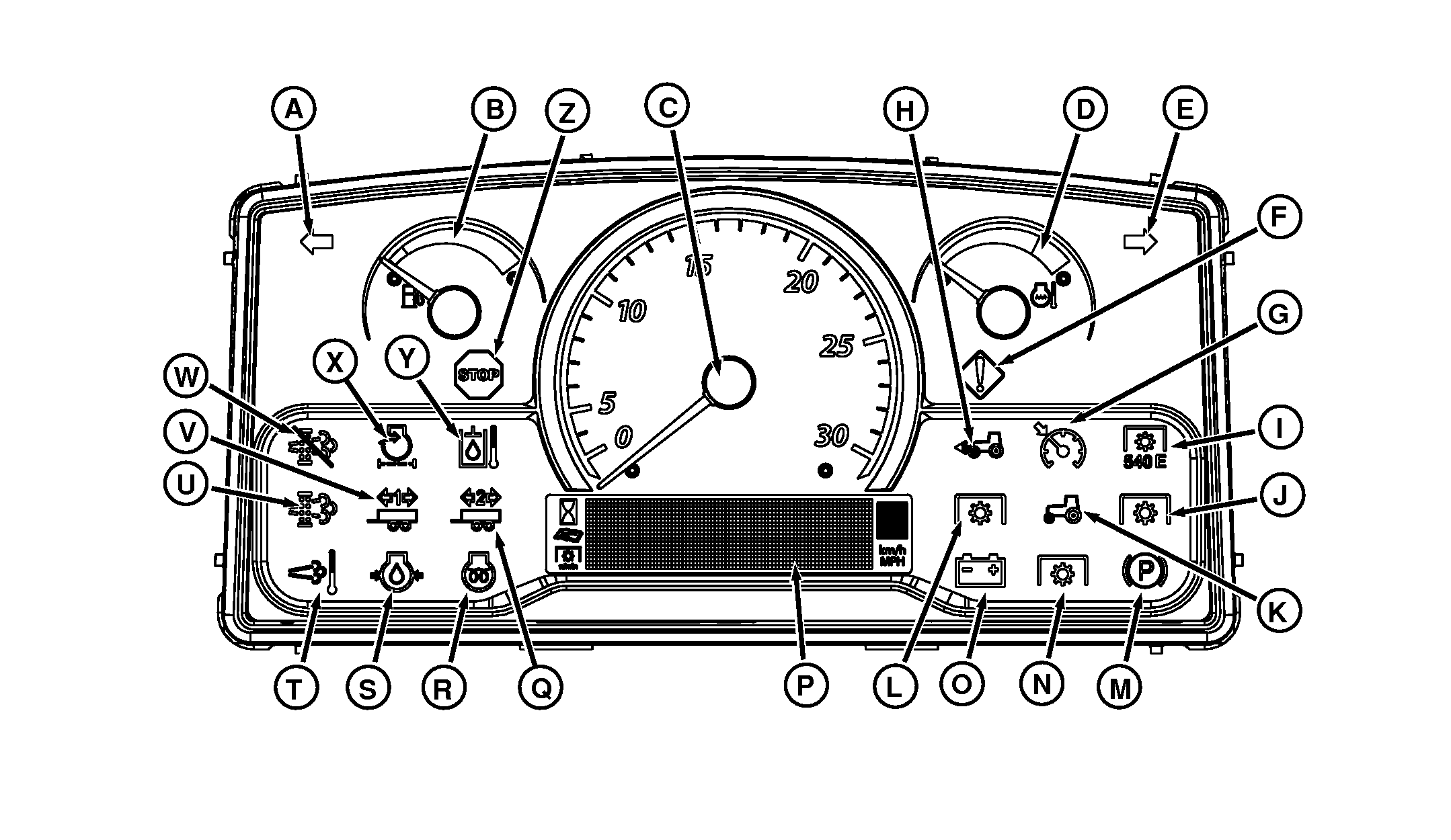

Instrument Control Panel

LV30626-UN-24SEP19

Instrument Control Panel

B - Fuel Gauge - Indicates the fuel level in the tank.

C - Tachometer - Displays engine speed in increments of 100.

D - Engine Coolant Temperature Gauge - Indicates the temperature of the cooling system.

E - Right Turn Signal/Warning Flasher Indicator Icon - Right turn signal, hazard light, and the headlight/taillight ON indicator light.

F - Service Alert Indicator Icon - Light flashes indicating performance or operational problem is detected that needs to be resolved as soon as possible.

G - Cruise Control Switch Icon - Illuminates when cruise control is switched on.

H - Front-Wheel Drive Indicator Icon - Illuminates when front-wheel drive is switched on (R models only).

I - 540E PTO Indicator Icon - Not used.

J - Rear PTO Indicator Icon - Illuminates when the rear PTO is engaged.

K - Tractor PTO Indicator Icon - Illuminates when any tractor PTO is engaged.

L - Front PTO Indicator Icon- Iluminates when the front PTO is engaged (if equipped).

M - Parking Brake Light- Illuminates when the ignition key is in the ON position and the parking brake is engaged.

N - Mid PTO Indicator Icon - Illuminates when the mid PTO is engaged, or both mid and rear PTO are engaged.

O - Alternator/Battery Charging Icon - Illuminates when the ignition key is in the ON position and the engine is not running. It also indicates an electrical load has exceeded alternator capacity and continued operation could deplete battery reserve.

P - Information Display Screen - Displays operational information.

Q - Trailer 2 Indicator Icon - Not used.

R - Engine Glow Plug Indicator Icon - Illuminates when the engine controller (ECU) determines the need for engine pre-heating. Time depends on ambient temperature.

S - Engine Oil Pressure Icon - Illuminates when there is insufficient engine oil pressure to continue operation.

T - High Exhaust Temperature Icon - Illuminates when the temperature is high enough inside the exhaust filter to allow active filter cleaning.

U - Exhaust Filter Indicator Icon - Illuminates when soot levels in the filter are high and exhaust filter cleaning is needed.

V - Trailer 1 Indicator Icon - Not used.

W - Auto Cleaning Disabled Indicator Icon - Not used.

X - Air Filter Restriction Icon - Illuminates when air cleaner element is clogged, indicating air element needs to be cleaned or replaced.

Y - Hydraulic Oil Temperature Icon - Illuminates when the hydraulic oil temperature is overheated (If equipped).

Z - STOP Indicator Icon - Light flashes when a serious malfunction is detected.
