Information Display Icons

The following icons will show up in the information display screen if applicable for your specific tractor.

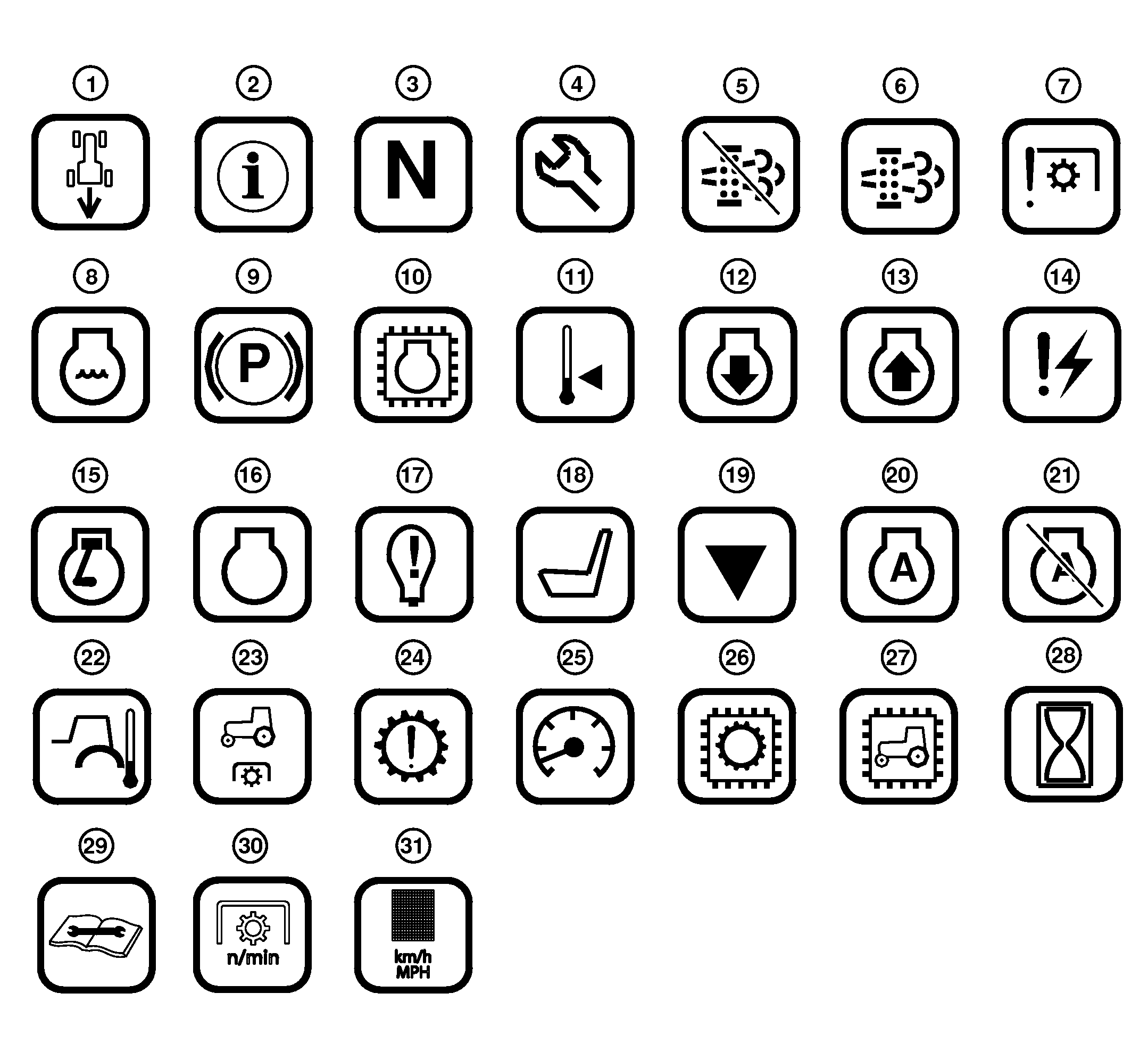

LV30645-UN-12DEC19

Information Display Icons

1 - RIO Active Icon - Illuminates when reverse implement option is active.

2 - Important Icon - This symbol is associated with feedback to operator.

3 - Shift to Neutral Icon - Shift to neutral position..

4 - Wrench Icon - Illuminates when there is an active error shown on the information display panel. May be accompanied by a display message.

5 - Automatic Regeneration Off Icon - Automatic regeneration has been disabled.

6 - Diesel Particulate Filter—Exhaust Filter Icon - When shown on the LCD, this symbol is associated with the display of soot level and filter hours.

7 - Shut PTO Off Icon - Illuminates when the condition requires the PTO to be shutoff.

8 - Engine Overheat Icon - Illuminates when engine coolant temperature is too high.

9 - Apply Park Brake Icon - Illuminates when the condition requires park brake engaged. May be accompanied by a display message.

10 - ECU Regeneration Inhibited Icon - Illuminates if the ECU is preventing regeneration. See your John Deere dealer.

11 - Engine Cold Icon - Illuminates when regeneration requires engine to be above 60° C.

12 - Reduce Engine Speed Icon - Illuminates when regeneration requires initial low idle.

13 - Increase Engine Speed Icon - Illuminates when engine speed needs to be increase..

14 - Electrical System Fault Icon - Illuminates when an electrical fault is present. May be accompanied by a display message.

15 - Engine Run Fault Icon - Illuminates when the operator attempts to engage the starter when the engine is already running. May be accompanied by a display message.

16 - Engine Icon - This symbol is associated with the display of engine hours.

17 - Bulb Fault Icon - Left or right turn signal fault.

18 - Operator Out of Seat Icon - Illuminates when the operator should return to seat..

19 - Calibration Mode Icon - Illuminates when tractor is in calibration mode.

20 - eThrottle Active Icon - Illuminates when eThrottle is active.

21- eThrottle Off Icon - Illuminates when eThrottle is not active.

22- Ambient Temperature Icon - Illuminates to show ambient temperature.

23 - Mid PTO Icon - This symbol is associated with the display of Mid PTO speed.

24 - Ground Speed Missing Icon - Illuminates to show transmission fault.

25 -Active ICC Icon - Illuminates to show active ICC diagnostic trouble code.

26 - Active TCU Icon - Illuminates to show active TCU diagnostic trouble code.

27 - Tractor Side View Icon - This symbol is associated with the display of vehicle hours.

28 - Hour Meter Icon - Illuminates when the engine or PTO hour information is shown on the information display panel.

29 - Service Alert Icon - Illuminates when there is an active error shown on the information display panel. May be accompanied by a display message.

30 - PTO Speed - This symbol is associated with the display of PTO speed.

31 - Kilometers/Miles Per Hour - Shows the kilometers / miles per hour the tractor is traveling.
