Replace Fuses and Relays

IMPORTANT: Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same ampere rating.


Locate Fuses and Relays

All the electrical circuits are protected by the fuses. Ampere rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuses

Fuse Rating

Color

10A

Red

15A

Blue

20A

Yellow

30A

Green


Fuse Location

  1. Park the machine safely.

  2. Raise the hood and remove the right side panel.

  3. LV27342
    LV27342-UN-25JAN17

    LV30327
    LV30327-UN-24SEP18

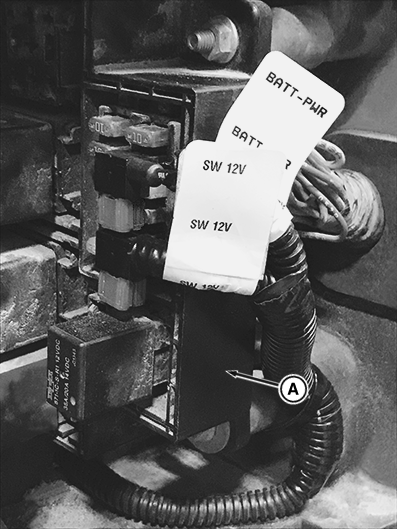

    Load Center - Third Function (If equipped)

    LV30309
    LV30309-UN-21SEP18

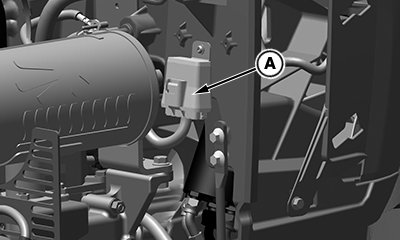

    Relay Load Center - Third Function (If equipped)

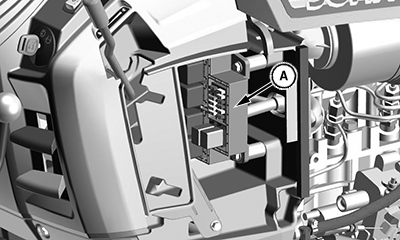

    A - Load Center

    Locate the load center (A).


  4. Identify the fuse or relay in the fuse block.

  5. NOTE: If third function kit is installed, there are two fuse taps that contain two fuses in each.

    Pull out the defective relay or fuse.

  6. Replace with the new relay or fuse.

  7. For third function kit only:

    1. LVP11066
      LVP11066-UN-05JUN20

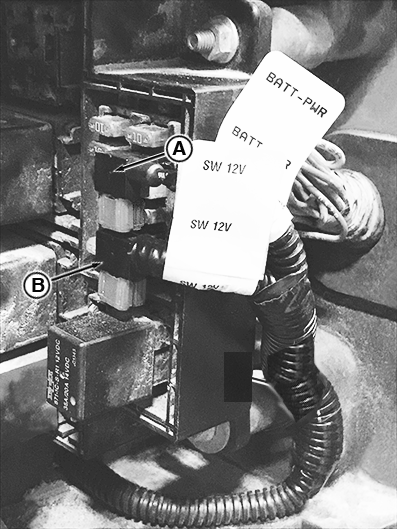

      A - BATT-PWR Fuse Tap Location

      B - SW 12 V Fuse Tap Location

      Fuses tap labeled with “SW 12 V” must be installed back into location (B).

    2. Fuses tap labeled with “BATT-PWR” must be installed back into location (A).

  8. Install the side panel.

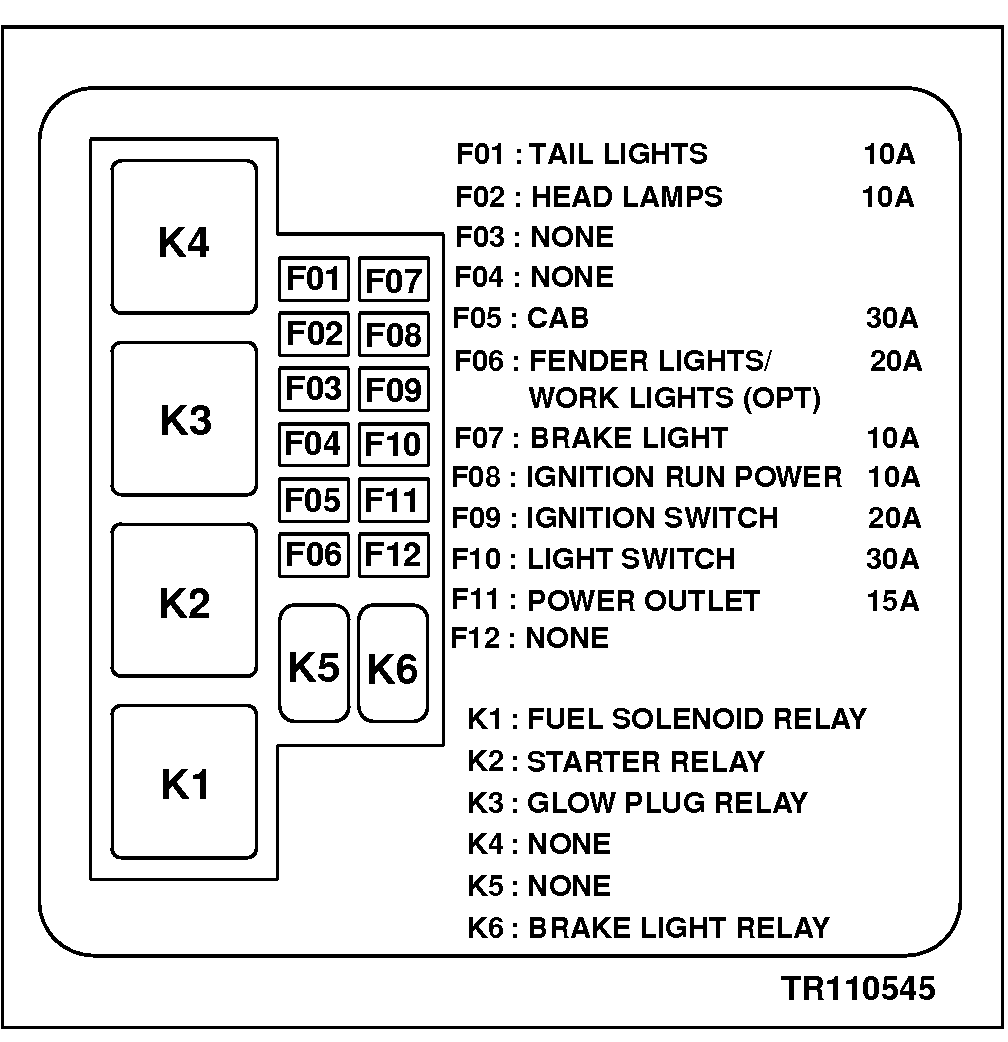

Fuse and Relay Size and Function

LVP11023
LVP11023-UN-05JUN20

TR110545

F01 - Taillight Fuse (10A)

F02 - Headlights Fuse (10A)

F03 - None

F04 - None

F05 - Cab Fuse (30A)

F06 - Fender Lights Fuse (1025R only) and Worklights Fuse (Option) (20A)

F07 - Brake Lights Fuse (10 A)

F08 - Ignition Run Power Fuse (10A)

F09 - Ignition Switch Fuse (20A)

F10 - Light Switch Fuse (30A)

F11 - Power Outlet Fuse (15A) (1025R only)

F12 - None

K1 - Fuel Solenoid Relay

K2 - Starter Relay

K3 - Glow Plug Relay

K4 - None

K5 - None

K6 - Brake Light Relay

LV30532
LV30532-UN-06MAR19

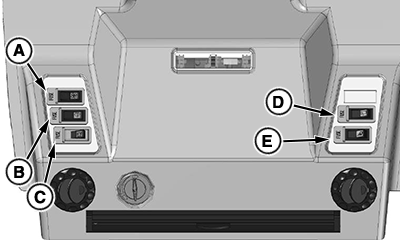

Fuse Location - Cab Options

A - Fan Fuse (10 A)

B - Front Wiper Fuse (7.5A)

C - Beacon Light Fuse (7.5A)

D - Rear Wiper Fuse (7.5A)

E - Work Light Fuse (5A)

LVP11069
LVP11069-UN-05JUN20

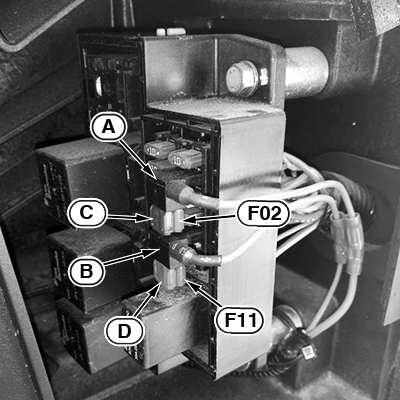

With Third Function (If Equipped)

A - BATT-PWR Fuse Tap

B - SW 12 V Fuse Tap

C - Third EH SCV Switch Fuse (5A)

D - Third EH SCV Relay Fuse (5A)

F02 - Headlight Fuse (10A)

F11 - Power Port Fuse (15A)

LV30536
LV30536-UN-11MAR19

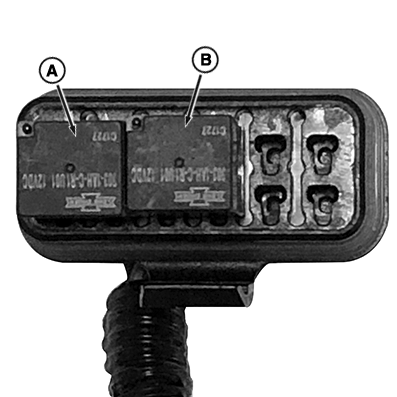

Relay Load Center - Third Function (If Equipped)

A - Third Function Retract Relay

B - Third Function Extend Relay
