Check Selective Control Valve

1.
   LV27366-UN-25JAN17

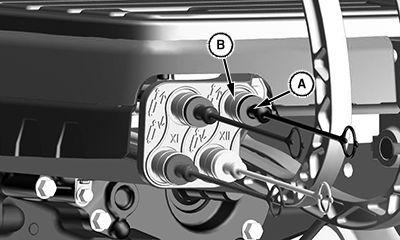

   SCV Couplers


   LVP11078-UN-06JUL20

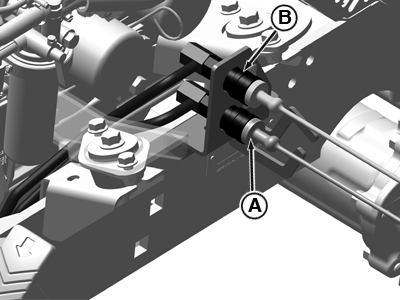

   Third Function Coupler (If equipped)

   A - Dust Plug

   B - Coupler

   Check the dust plugs (A) for damage, replace as needed.

---




2. Clean dirt and debris from the selective control valve couplers (B).

3. Check selective control valve couplers (B) for oil leakage. Contact your John Deere dealer for service.
