Using Seat Belt

Always wear seat belt when operating machine with folding Roll-Over Protective Structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

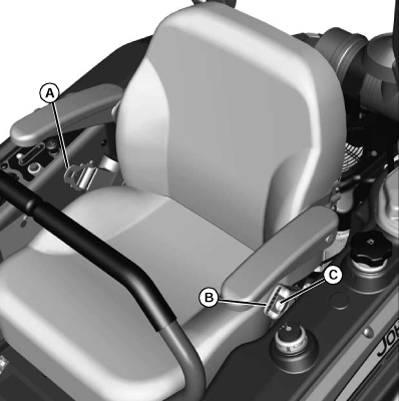

TCAL43460
TCAL43460-UN-21MAR13

  1. Sit in seat.

  2. Pull out seat belt buckle (A) and stretch across your lap in one nonstop motion.

  3. Insert seat belt buckle into latch (B) until it locks.

  4. To release seat belt, press button (C) until buckle comes out of latch.
