Lubricating Deck Components (Spindles)

Removal of belt shields and foot plate is not necessary to lubricate the spindles.

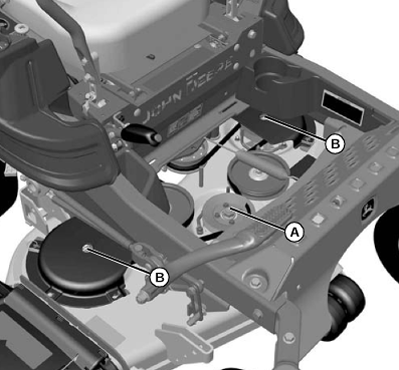

TCAL43497-UN-21MAR13

• Lubricate one mower deck spindle grease fitting (A), located in the center of the deck.
• Lubricate two mower deck spindle grease fittings (B).
