Removing and Installing Foot Plate

Always operate the mower with the foot plate installed. Operating with the foot plate removed can cause serious injury.


Removing Foot Plate

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

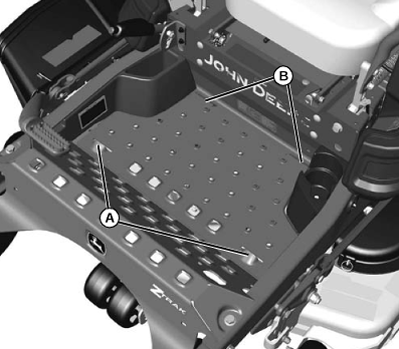

  2. TCAL43559
    TCAL43559-UN-21MAR13

    Rotate foot plate up using handles (A).


  3. Remove foot plate.


Installing Foot Plate

  1. Place tabs (B) of foot plate into slots in frame.

  2. Lower foot plate.

BB87125,0001226-19-20130604
