Removing and Installing Mower Deck Belt Shields

Help prevent serious personal injury. Do not operate the mower without the belt shields installed.

Removing Belt Shields

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Lower mower deck to the lowest cutting height position.

3.

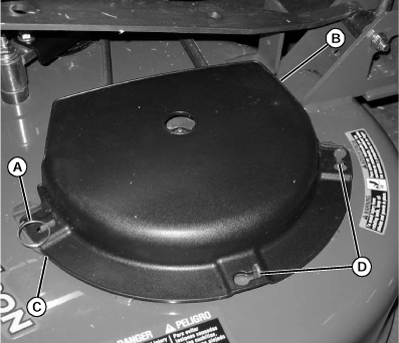

   TCAL43560-UN-21MAR13

   Remove belt shield locking ring (A).

---




4. Remove belt shields (B).

   • Lift corner of belt shield from stud (C). Rotate shield counterclockwise to clear head pins (D).



Installing Belt Shields

1. Install belt shields.

   • Rotate shield clockwise to engage head pins (D) and stud (C).



2. Install belt shield locking ring (A).
