Removing and Installing Rear Drive Wheels

The machine can fall or slip from an unsafe lifting device or supports.

• Use a safe lifting device rated for the load to be lifted.

• Lower machine onto jack stands or other stable supports and block wheels before servicing.

Removing:

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

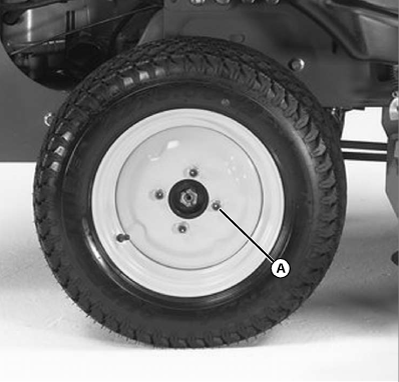

   TCAL43580-UN-21MAR13

   Slightly loosen four wheel nuts (A).

---




3. Lift machine with a safe lifting device. (See Lifting Machine in the SERVICE MISCELLANEOUS Section.)

4. Remove wheel nuts.

5. Remove wheel.

Installing:

1. Install new wheel.

2. Install and tighten alternately until recommended torque value is reached.

   • Tighten nuts to specification.

     Wheel Nuts	Torque	100 N·m (75 lb-ft.)




3. Lower machine.
