Setting Mower Deck Cutting Height (R Series)

Rotating blades are dangerous and can cut fingers and toes. Stop engine, lock the park brake, and wait for blade to stop rotating before adjusting cutting height.

Cutting height can be adjusted from approximately 25 to 139 mm (1 to 5-1/2 in.). Each increment on the knob adjusts the height-of-cut (HOC) approximately 6 mm (1/4 in.).

The deck can also be raised and locked in a transport position, to provide maximum ground clearance when moving the machine from one area to another.

Adjusting

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Disengage PTO.

3. Keep engine running and lock park brake.

4. Raise mower deck using deck lift pedal.

5.

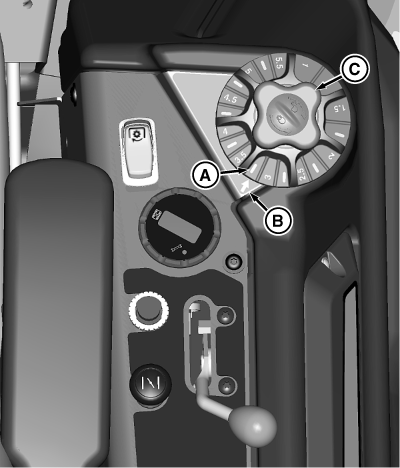

   TCT012781-UN-26JUN15

   With deck in raised position, adjust height of cut knob (A) to align cut height to index mark (B).

---




6. Release pedal to lower deck to desired setting.

Transport Lock

The deck can be locked in a transport position to give maximum ground clearance when the machine is moved to and from various work sites.

The transport lock should always be used if the deck needs to be in the transport position for more than 10 seconds only on Z900R Series that utilize the power deck lift.

The transport lock function allows the deck to be returned to the previous Height of Cut after being in the transport position.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Disengage PTO.

3. Stop engine and lock park brake.

4. If machine is equipped with convenience package raise and lower deck with power lift switch located on left control lever.

   Raise mower deck using deck lift pedal.

5. With deck in raised position, rotate knob (C) counter clockwise into the transport lock position.

6. Release pedal to lower deck to transport setting.

Release Transport Lock

1. Raise mower deck using deck lift pedal.

2. Rotate transport lock knob clockwise. Knob will release to off position.

3. Release pedal to lower deck to previous height of cut setting.
