Using the Park Brake

Children or bystanders may attempt to move or operate an unattended machine.

Always lock the park brake and remove the key before leaving the machine unattended.

Park Brake Pedal

1.

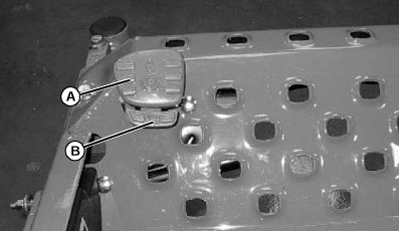

   TCAL43476-UN-21MAR13

   To lock the park brake, press park brake pedal (A) fully down.

---




2. To unlock the park brake, press park brake release (B) with your heel.

Park Brake Lever

1.

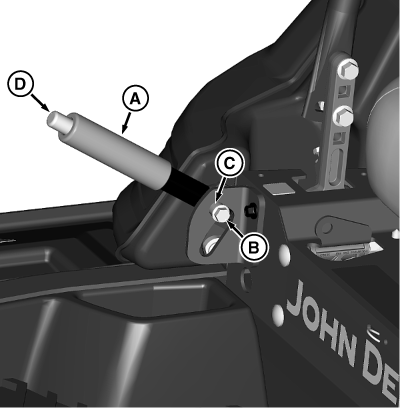

   TCT012783-UN-09JUN15

   To lock the park brake, pull upward on park brake hand lever (A) fully so that latch (B) is retained into bracket slot (C).

---




2. To unlock the park brake, pull upward slightly on park brake handle lever (A), press in button (D) and fully lower lever. Release button on hand lever.
