Removing Engine Access Grill

Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

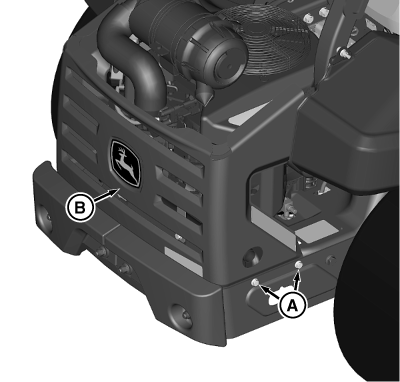

  2. TCT012785
    TCT012785-UN-09JUN15

    Remove two bolts (A) on each side of machine.


  3. Remove and set aside engine access grill (B).

  4. Install engine access grill with four bolts.

BS62576,0001A85-19-20150608
