Lifting Machine

1. Park machine safely. (See Parking Safely in the SAFETY section.)

   The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.

   • Lower machine onto jack stands or other stable supports and block wheels before servicing.

   Place jack stands under frame, not under transmission or engine, when raising or supporting machine.

2.

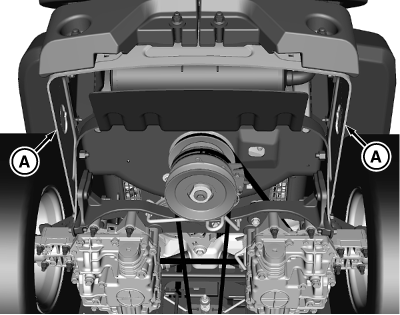

   TCT012789-UN-09JUN15

   Safely lift rear of machine at vertical frame points (A). Place jack stands or other stable supports near lift locations.

---




3. If only lifting rear of machine, block front wheels remaining on ground to avoid movement of machine.

4.

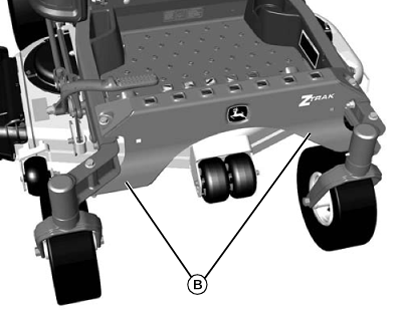

   TCAL43579-UN-21MAR13

   Safely lift front of machine at bottom of plates (B). Place jack stands or other stable supports near lift locations.

---




5. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of machine.

6. To lower machine, lift front and/or rear of machine, and remove jack stands or supports. Lower machine.
