Balancing Blades

Avoid injury! Blades are sharp. Always wear gloves when handling blades or working near blades.

  1. Clean blade.

  2. GXAL42042
    GXAL42042-UN-04MAR13

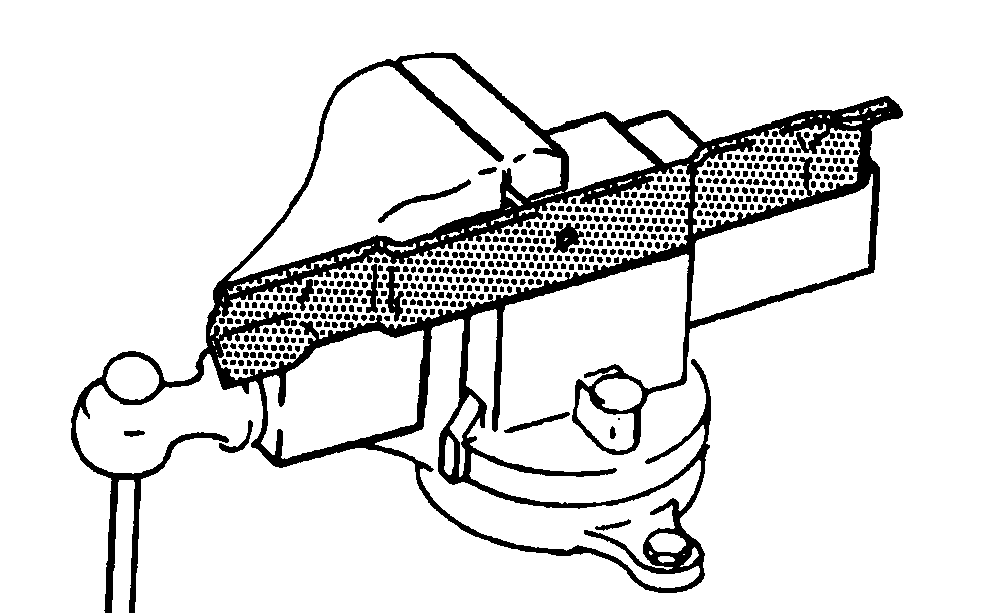

    Put blade on nail in a vise. Turn blade to horizontal position.


  3. Check balance. If blade is not balanced, heavy end of blade will drop.

  4. Grind bevel of heavy end. Do not change blade bevel.

TCT011317
TCT011317-UN-18JUN15

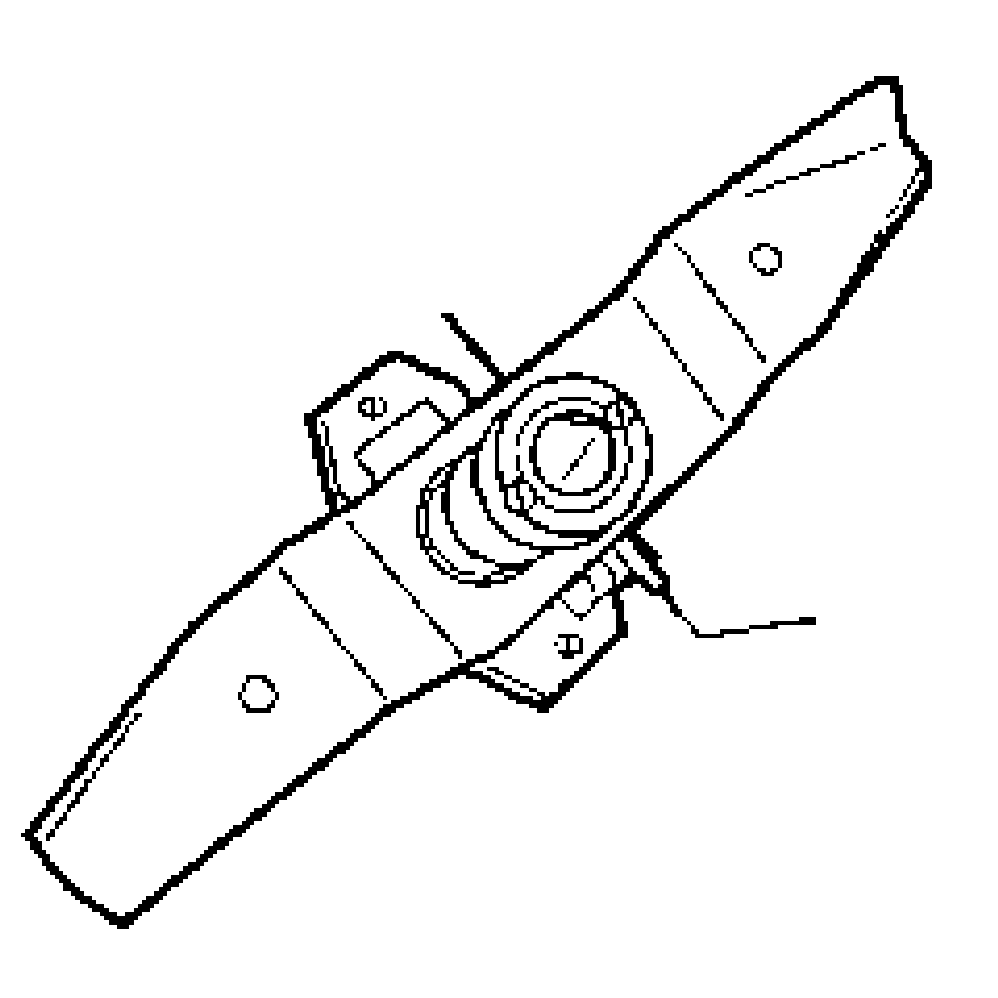

For your convenience, a blade balancing tool (B1SB9788) is available from your John Deere dealer.

MX00654,0000054-19-20150618
