Removing and Installing Caster Wheels

The machine can fall or slip from an unsafe lifting device or supports.

• Use a safe lifting device rated for the load to be lifted.

• Lower machine onto jack stands or other stable supports and block wheels before servicing.


Removing

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Lift front of machine with a safe lifting device. (See Lifting Machine in the SERVICE MISCELLANEOUS Section.)

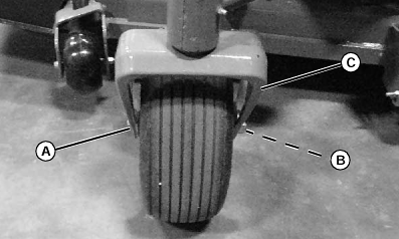

  3. TCAL43550
    TCAL43550-UN-21MAR13

    Remove hex nut (A) and wheel bolt (B).


  4. Remove wheel from assembly yoke (C).


Installing

  1. Install replacement wheel. Be sure bearing dust caps are installed.

  2. Install wheel bolt (B) and hex nut (A).

  3. Tighten nut and torque to specication.
    Wheel BoltTorque37 Nm (27 Ft. lbs)

  4. Lower machine.

MX00654,00001D7-19-20131112
