Checking and Aligning Motion Control Levers


Check Alignment

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Move both motion control levers forward.

  3. Check levers for equal alignment. If position of control levers are unequal, an adjustment is necessary.


Alignment Procedure

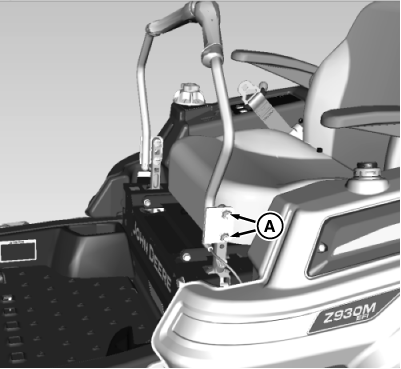

  1. TCT007082
    TCT007082-UN-12NOV13

    Loosen locknuts (A).


  2. Slide both left and right motion control levers forward or rearward to desired position on control arm until levers are aligned.

  3. The control lever height can also be adjusted using this procedure. There are two height settings on the control arms.

    Tighten locknuts.
