Checking and Adjusting Motion Control Levers Gap

Checking Alignment

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.
   TCAL43482-UN-21MAR13

   Move motion control levers (A) inward to neutral position.

---




3. If the ends of the levers strike against each other while in the neutral position an adjustment is needed.

Adjustment Procedure

1.

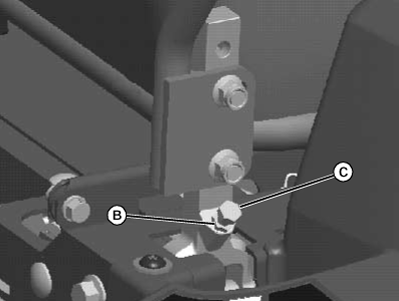

   TCAL43553-UN-21MAR13

   Loosen jam nuts (B).

---




2. Tighten left and right adjustment bolts (C) slightly to increase gap between handles. See the recommended gap specification for motion control levers.

   Motion Control Levers	Gap	6-19 mm (1/4-3/4 in.)

3. Tighten jam nuts to hold adjustment bolts in place.
