Cleaning Debris From Cooling System

1. Touching hot surfaces can burn skin. The engine, components, and fluids are hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

   Checking, cleaning cooling fins and oil cooler must be performed every 100 hours.

   Park machine safely on a level surface. (See Parking Safely in the SAFETY section.)

2. To avoid damage from overheating, clean all debris from cylinder head cooling fins, oil cooler, and engine area as stated in the machine service intervals.

   • The interval for cleaning debris from the engine compartment area is daily.

   •Remove the cleanout panels and clean all debris from cylinder head cooling fins every 100 hours, or more frequently depending on operating conditions.

   • The interval for removing the cooling shrouds and cleaning debris from complete cooling system is every 500 hours, or more frequently depending on operating conditions.

   After inspection, If all debris cannot be cleaned out after performing 100 Hour Interval, perform the Every 500 Hours interval.

   Remove covers:

   •

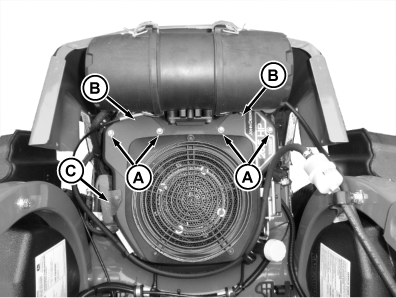

     TCT011981-UN-18NOV14

     Z915E, Z925M, and Z930M EFI

     Z915E, Z925M, and Z930M EFI: Remove four screws (A) and two covers (B).

   ---

   •

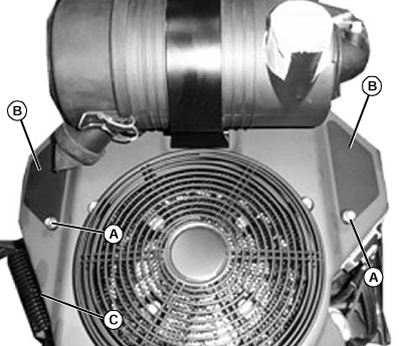

     TCAL43513-UN-21MAR13

     All other models: Remove two screws (A) and two covers (B).

   ---




---




3. Remove spark plug wires.

4. Compressed air can cause debris to fly a long distance.

   • Clear work area of bystanders.

   • Wear eye protection when using compressed air for cleaning purposes.

   • Reduce compressed air pressure to 210 kPa (30 psi).

   With compressed air, thoroughly clean debris buildup.

5. Install spark plug wires.

6. Install two covers on shroud.

7. Raise seat.

8. Check and clean engine oil cooler (C) (if equipped) and blow out debris with compressed air.

9. Lower seat.
