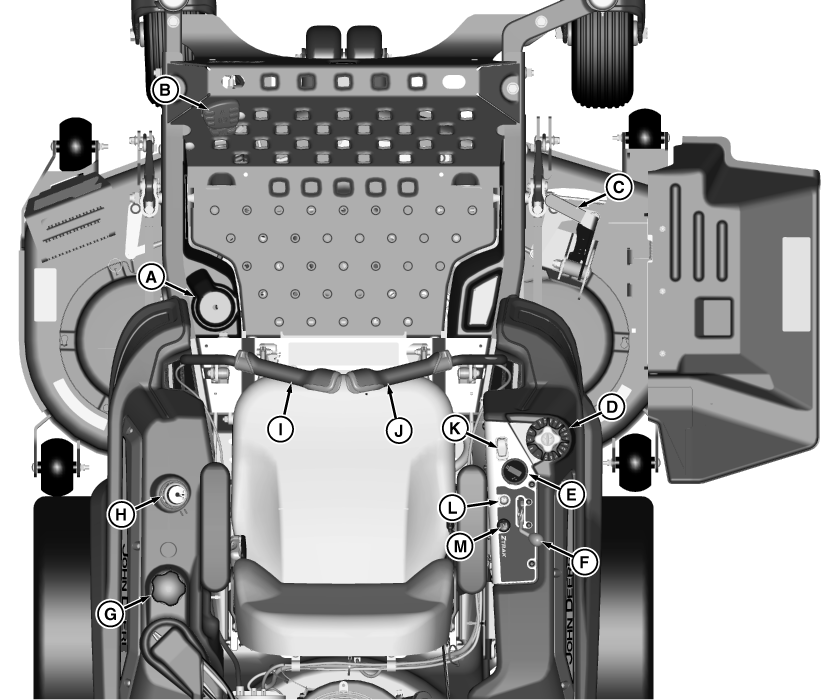

Z900R Series

TCT013633-UN-24MAR16

A - Beverage Holder

B - Park Brake Pedal

C - MOD Lever

D - Height of Cut / Transport Lock Knob

E - Hourmeter

F - Engine Speed Control Lever

G - Fuel Tank Cap

H - Fuel Level Gauge

I - Left Motion Control Lever

J - Right Motion Control Lever

K - PTO Engagement Switch

L - Ignition Key Switch

M - Carburetor Choke Knob
