Lubricating Front Caster Wheel Pivots

TCT013636
TCT013636-UN-24MAR16

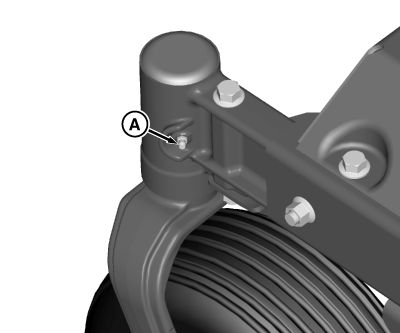

Left Caster Wheel Shown

TCT013638
TCT013638-UN-24MAR16

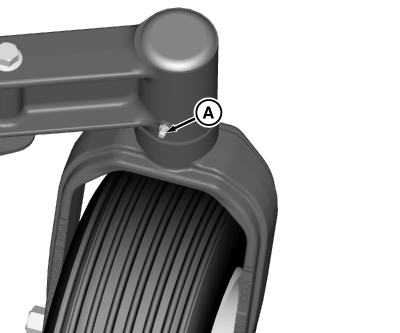

Right Caster Wheel Shown

  1. Lubricate both front caster wheel pivot grease fittings (A) with John Deere Special Purpose HD Water Resistant NM Grease or John Deere Multi-Purpose HD Lithium Complex Grease.

MX52301,0000EF8-19-20160324
