Checking ROPS Hardware

1. Park machine safely. (Refer to Parking Safely in the SAFETY section.)

2. When tightening ROPS hardware, tighten the bolt head side and not the nut.

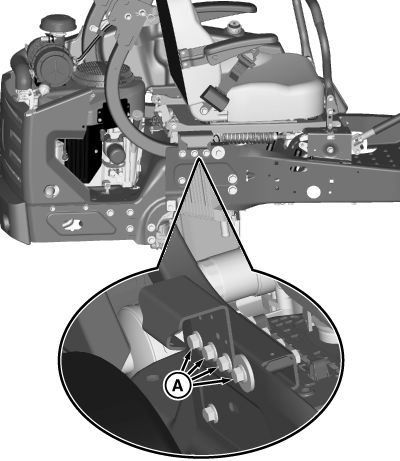

   TCT013634-UN-24MAR16

   Tighten the four ROPS attaching bolts (A) on each side of ROPS to specification.

   ROPS Attaching Bolts	Torque	115 N·m (85 lb-ft)

---
