Adjusting Suspension Seat

1. Sit on operator seat.

2.

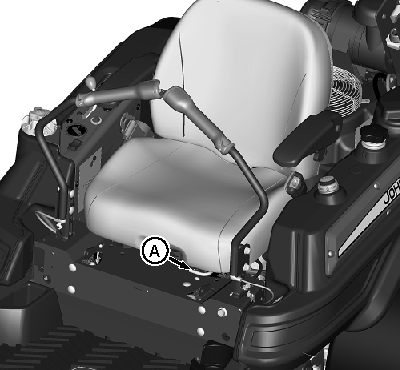

   TCT011320-UN-23JUN15

   Pull up and hold seat handle (A).

---




3. Slide forward or backward to desired position.

4. Release handle.

Adjust Ride Comfort

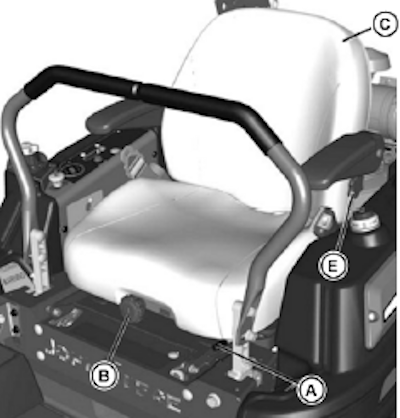

TCT011319-UN-19JUN15

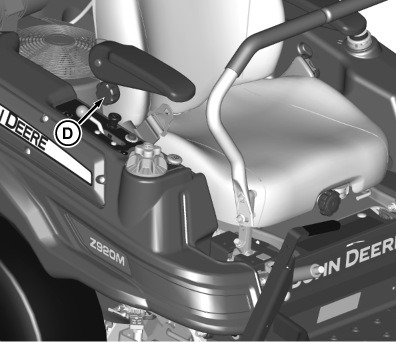

TCT011885-UN-22OCT14

Adjust seat spring tension knob (B) to the weight of the operator, so that the seat “floats” in the center of its travel as the machine traverses rough terrain.

1. Adjust seat suspension.
   • Turn seat spring tension knob (B) to the right (clockwise) for a firmer ride.
2. Adjust seat back.
   • Gently pull forward or backward on the seat back (C) and turn knob (E) to desired seat back position.
3. Adjust lumbar support
   • Turn knob (D) to desired lumbar support position.
