Using the Comfort and Convenience Package Controls (Z900R Series)

Per design, the deck will lower if the lift button is held for 10 to 12 seconds or the machine is turned off.

Power Deck Lift

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

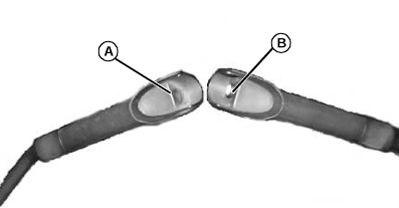

   TCAL43464-UN-21MAR13

   Push button (A) on left motion control lever to raise mower deck.

---

PTO Shut Off

Once PTO has been shut off using the button on the right control lever, the PTO switch must be cycled off and on to re-engage PTO.

• Push button (B) on right motion control lever to shut off PTO.
