Operating Mulch-On-Demand Mower Deck (MOD) If Equipped

To Mulch:

1.

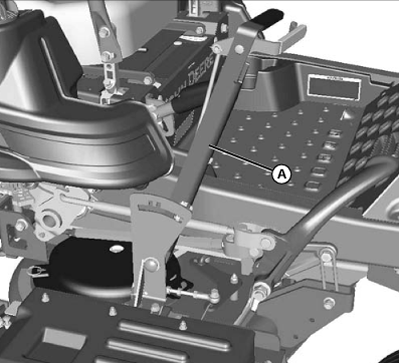

   TCAL43489-UN-21MAR13

   Lever position forward (closed) for mulch position.

   Push deck mode lever (A) forward for the mulch position.

---

To Side Discharge:

1.

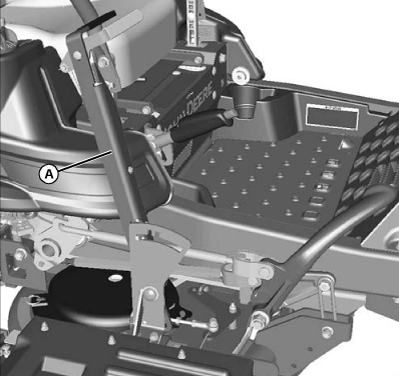

   TCAL43490-UN-21MAR13

   Lever position rearward (open) for side discharge position.

   Pull deck mode lever (A) rearward for side discharge mode.

---

Adjusting Chamber Separators

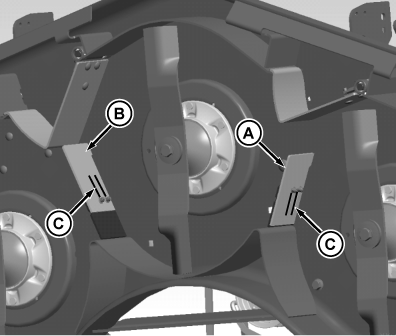

TCT011893-UN-05NOV14

Depending on mowing conditions, chamber separators can be adjusted, or removed, to improve performance when mulching or side discharging.

Move chamber separators in the forward position (B) for best mulching performance; they should be in the rearward position (A) or removed when side discharging. However, any combination of chamber separators placements can be used at the customer's discretion.

Chamber separators are slotted (C) for ease of adjustment.

To Adjust or Remove Chamber Separators:

1. Park machine safely. (See Parking Safely in the SAFETY SECTION.)

2. Raise the mower deck to the highest position.

3. Raise front of machine with a safe lifting device. (See Lifting Machine in the SERVICE MISCELLANEOUS Section.)

4.

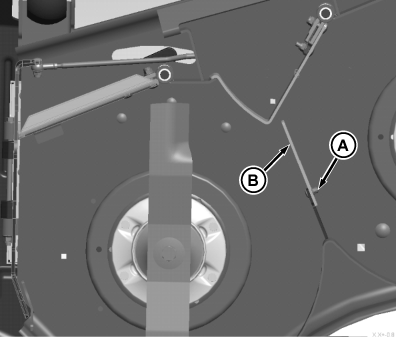

   TCT011900-UN-14NOV14

   Loosen M6 locknut (A).

---




5. If chamber separators are removed, store M6 locknut and M6 carriage bolt with chamber separators for later use.

   Move chamber separators (B) in, out, or remove as required.

6. Secure with M6 locknut.

7. Repeat as necessary for second chamber separators.
