Raising and Lowering Operator Seat

TCT011889
TCT011889-UN-27OCT14



Raising the Seat

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

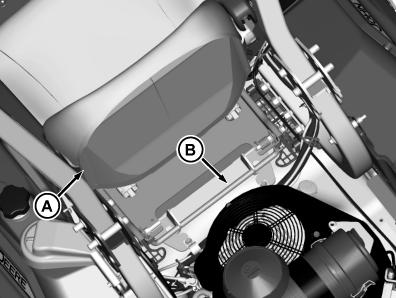

  2. Stand on side of the machine. Lift seat (A) by lifting seat latch (B).

  3. TCT011890
    TCT011890-UN-27OCT14

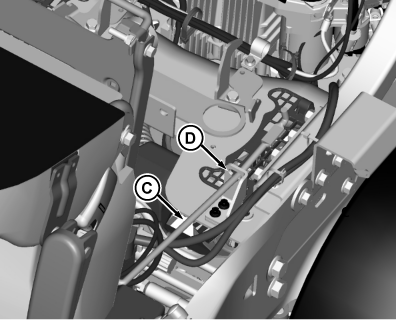

    Slide seat rod (C) through the bracket cutout (C).



  4. Set the seat rod in the lower cutout of the bracket.


Lowering the Seat

  1. Stand on the side of the machine.

  2. Push seat forward slightly and reset seat rod into the top slide of the frame cutout.

  3. Lower seat and return vehicle into service.
