Checking and Replacing Traction Drive Belt

Entanglement in a belt or pulley can cause serious injury. Stop engine and wait for all moving parts to stop.

The traction drive belt is self-adjusted using a spring tensioner and does not require a tension adjustment.

Checking Belt:

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Inspect belt for excessive wear, damage or stretching while in position on the transmission pulley and drive belt tensioner pulley.

Replacing Belt

1. Remove mower deck belt. (See Replacing Mower Deck Drive Belt in SERVICE MOWER Section.)

2. Components are installed under spring tension. Wear eye protection and use proper tools when installing and removing components with spring tension.

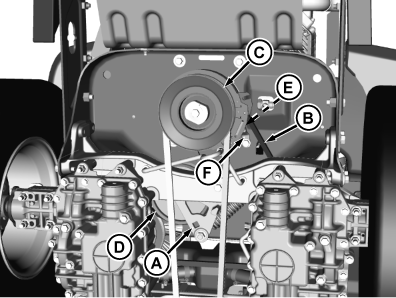

   TCT011888-UN-22OCT14

   Insert a 1/2 in. drive extension tool into square hole (A) on tensioner arm, and rotate clockwise to release tension on belt (B).

---




3. While tensioner arm is rotated, remove traction drive belt from traction pulley (C).

4. Slowly rotate tensioner arm counterclockwise to release spring tension.

5. Remove belt from both transmission drive sheaves and idler pulley (D).

6. Install belt onto drive pulley and idler pulley as shown.

7. Rotate tensioner arm clockwise and install traction drive belt into traction pulley. Release tension and verify belt routing is correct.

8. Verify that there is a 3.2 mm (1/8 in.) gap (E) between belt guide (F) and clutch pulley (C). If necessary, loosen bolt on belt guide and adjust to specification.
