Remove Cooling Shroud and Remove Debris (Model Z920M)

Compressed air can cause debris to fly a long distance.

• Clear work area of bystanders.

• Wear eye protection when using compressed air for cleaning purposes.

• Reduce compressed air pressure to 210 kPa (30 psi).

To ensure proper cooling, always keep the engine cooling fins and surrounding area clean. Operating the engine with obstructed cooling fins could cause engine damage due to overheating.

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine to cool.

  3. Remove engine access grill.

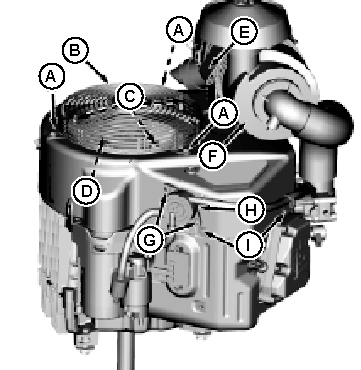

  4. TCT011312
    TCT011312-UN-17JUN15

    Loosen and remove three hex socket head bolts (A) and remove fan screen guard (B).


  5. Remove three hex head bolts (C) and remove fan screen (D).

  6. Open air cleaner latch (E) and remove air cleaner assembly (F) from top of engine.

  7. Remove two hex head bolts (G) and remove fuel pump (H).

  8. Remove six engine shroud hex head bolts (I).

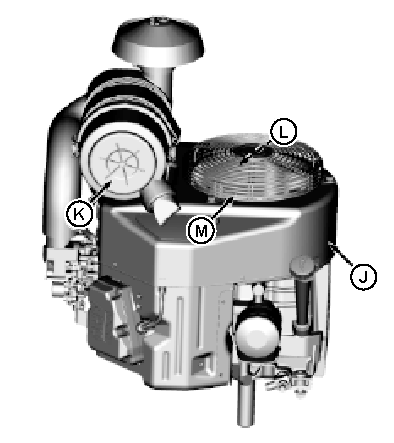

  9. TCT011313
    TCT011313-UN-17JUN15

    Lift shroud (J) upward and remove from engine compartment.


  10. Clean debris from engine area and all engine cooling fins.

  11. Install engine shroud (J).

  12. Install fuel pump.

  13. Install air cleaner (K).

  14. Install fan screen (L).

  15. Install fan screen guard (M).

  16. Tighten all hardware.

  17. Install engine access grill.

OUO2004,0000AFF-19-20150616
