Remove Cooling Shroud and Remove Debris (Model Z925M and Z930M-EFI)

Compressed air can cause debris to fly a long distance.

• Clear work area of bystanders.

• Wear eye protection when using compressed air for cleaning purposes.

• Reduce compressed air pressure to 210 kPa (30 psi).

To ensure proper cooling, always keep the engine cooling fins and surrounding area clean. Operating the engine with obstructed cooling fins could cause engine damage due to overheating.

Your model may be different from the model shown.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow machine to cool down.

3. Remove engine access grill.

Screen and Shroud Removal

1.

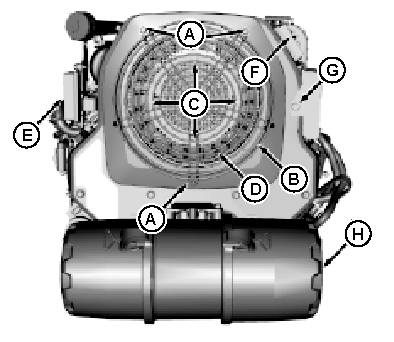

   TCT011314-UN-17JUN15

   Remove three screws and spacers (A) and guard (B) from blower housing.

---




2. Remove four bolts (C) with washers and grass screen (D) from engine.

3. Remove engine control unit mounting bolts (E) to access shroud cover bolts.

4. Unplug voltage regulator (F).

5. Remove engine oil cooler bolts (G), and clean engine oil cooler fins.

6. Remove air cleaner (H) and attached air intake hose by removing the clamp at throttle body.

7.

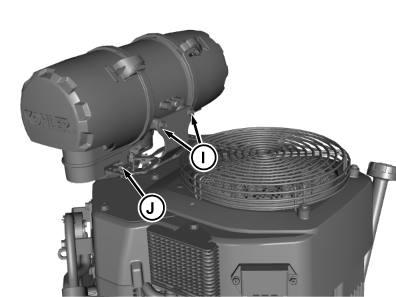

   TCT011987-UN-18NOV14

   Remove two fuel line clamp bolts (J).

---




8. Remove two air cleaner bracket screws (I).

9. Remove air cleaner brackets.

10.

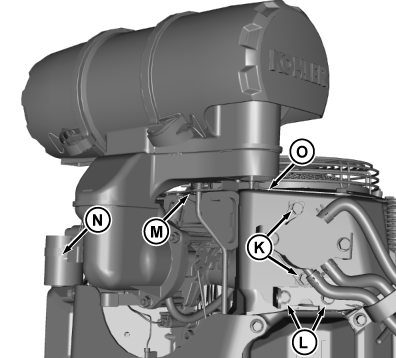

    TCT011988-UN-18NOV14

    Remove fuel pump bolts (K).

---




11. Remove lift bracket bolts (L).

12. Move throttle bracket (M) away from shroud.

13. Remove breather oil separator (N), mounting hardware, and bracket.

14. Remove remaining bolts around shroud (O) and remove shroud.

15. Clean debris from engine area and all engine cooling fins.

Screen and Shroud Installation

1. Install engine shroud.

2. Install remaining components in reverse order of removal.

3. Tighten all hardware.

4. Install engine access grill.
