Using Indicator Lights

Z915E

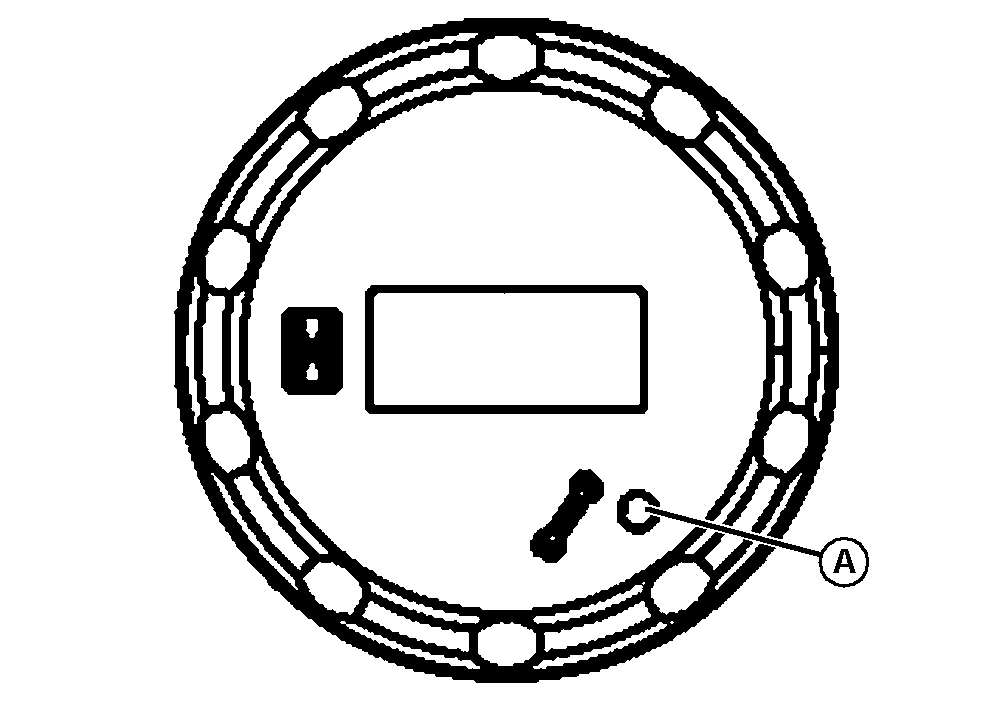

TCAL43479
TCAL43479-UN-21MAR13

  • Vehicle Diagnostic Indicator Light (A) is not used.

All Other Models

  • TCAL43480
    TCAL43480-UN-21MAR13

    Engine Coolant Temperature Indicator Light (A) is not used.
  • Engine Diagnostic Indicator Light (B) is used for Z925M and Z945M EFI, Z955M EFI engines only. Light will be on if active engine diagnostic code is present. See your John Deere dealer.
  • Vehicle Diagnostic Indicator Light (C) will flash a diagnostic code to help the operator identify operational and electrical problems. See DTC codes in TROUBLESHOOTING. See Vehicle Diagnostic Light Check in SERVICE ELECTRICAL section.
  • Engine Oil Pressure Indicator Light (D) will glow when engine oil pressure is low. If light glows when engine is running, stop engine immediately. See your John Deere distributor.
  • Park Brake Switch Icon (E) will be visible when park brake hand lever is raised or foot pedal is pressed.
  • PTO Switch Icon (F) will be visible when PTO switch is activated.
