Adjusting Seat

  1. Sit in seat.

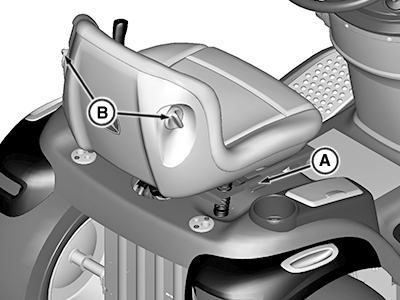

  2. PY24019
    PY24019-UN-13MAY15

    Lift up on (A) on right side of seat.


  3. Lean forward and slide seat forward or rearward to desired position. Do not lean back on top of seat to push rearward.

  4. Release seat adjustment lever to lock in position.


Lumbar Seat Adjustment (D160, D170)

  • Turn lumbar seat adjustment dials (B) on either side of seat to adjust firmness of seat.

RM87422,0000247-19-20150513
