Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   PY24570-UN-03JUL15


   PY24571-UN-03JUL15

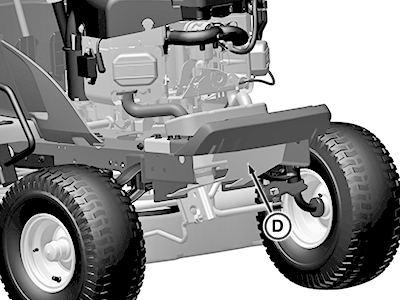

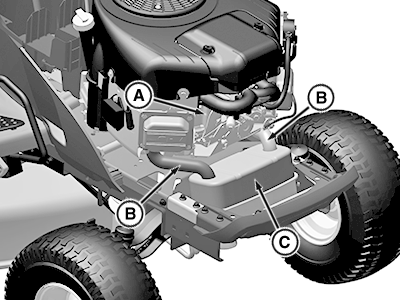

   Exhaust manifold (A), muffler pipe (B), muffler (C) and muffler shield (D).

---




2.
   PY24098-UN-05JUN15

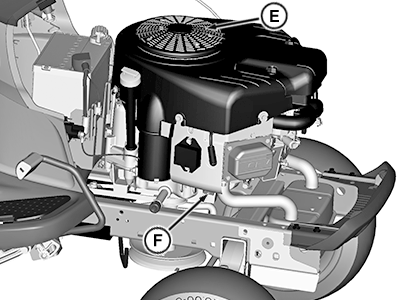

   Engine intake screens (E), cooling fins (F), and oil cooler (if equipped).

---




3.
   PY24594-UN-27JUL15

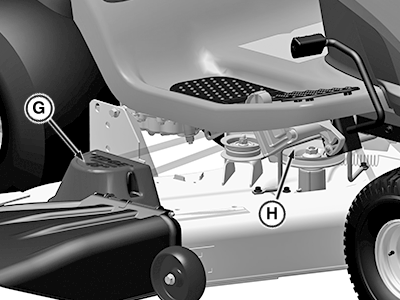

   Top of mower deck, under shields (G), including spindle (H) and belt areas.

---




4.
   GXAL41972-UN-04MAR13

   Shown with wheel removed

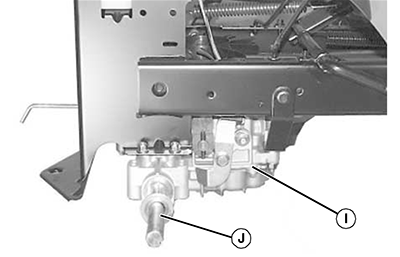

   On or near transmission (I) and driveline (J).

---




5.
   PY24574-UN-15JUL15

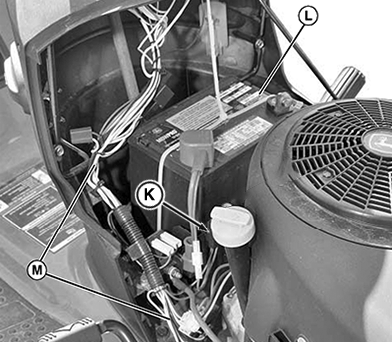

   Under left side panel near fuse block (K), and all wiring, including the battery (L) and related wiring harnesses (M).

---
