Remove Machine from Crate (Z535M With 62 inch Edge™)

1.

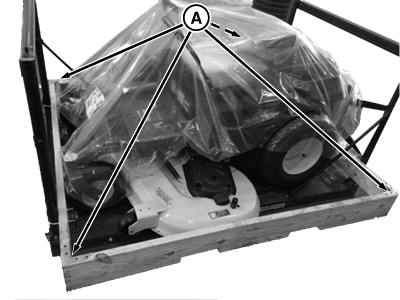

   GXT003287-UN-06SEP16

   Remove frame protector assembly by removing four corner brackets (A).

---




2.

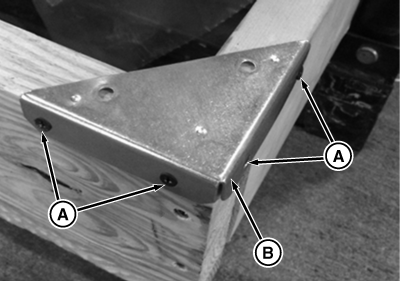

   GXT003288-UN-06SEP16

   Remove four wood screws (A) (16 total) from each corner bracket (B).

---




3.

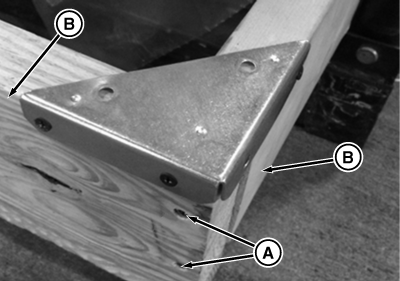

   GXT003289-UN-06SEP16

   Remove two wood screws (A) (8 total) from each of the frame members (B) (4 total).

---




4.

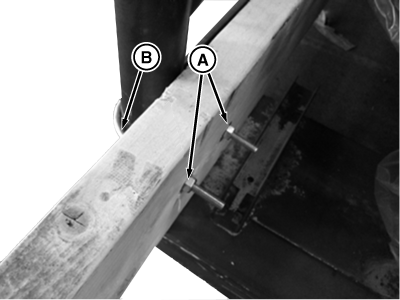

   GXT003290-UN-06SEP16

   Remove two nuts (A) (8 total) from each U-bolt (B) (4 total) using a 1/2 in wrench.

---




5. Remove and discard all 24 wood screws, 4 U-bolts, 4 corner brackets, 8 nuts, and 4 frame members from e-crate.

6. Return e-crate without previously described frame protector assembly components.
