Cleaning Spark Arrestor

Z525E, Z535M, Z535R

1.

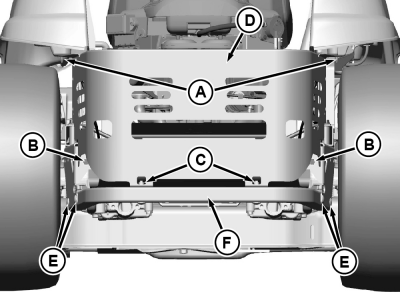

   GXT002406-UN-16JUL15

   Remove two push retainers (A), four bolts (B, C) and rear cover (D) from machine.

---




2. Remove four bolts (E) and frame tube (F).

3.

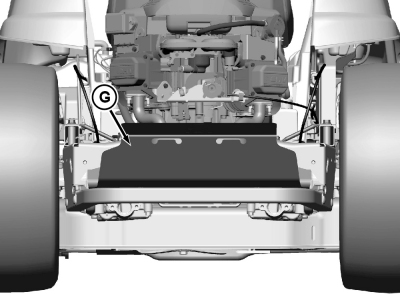

   GXT002407-UN-16JUL15

   Remove muffler shield (G).

---




4.

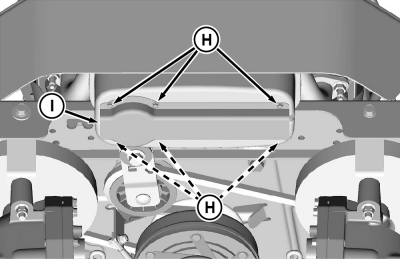

   GXT002422-UN-16JUL15

   Remove screws (H), spark arrestor cover (I) and spark arrestor from engine.

---




5. Inspect, clean, or if necessary, replace the screen if damaged.

6. Install spark arrestor and cover on muffler with original screws.

7. Install muffler shield and tighten hardware.

   NOTE: If muffler sustains damage during the removal or installation process, replace muffler.

Z540M, Z540R

1.

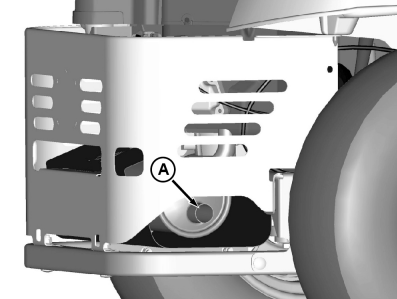

   GXT002203-UN-09JUN15

   Remove screw and spark arrestor from end of muffler exhaust pipe (A).

   NOTE: Observe direction of arrestor inside exhaust pipe for reassembly.

---




2. Inspect, clean, or if necessary, replace the screen if damaged.

3. Install spark arrestor on muffler exhaust pipe with original screw.

   NOTE: If muffler sustains damage during the removal or installation process, replace muffler.
