Using Bench Seat Fold Down Rack

For extra storage or cargo box capacity, fold down the rear bench seat cargo rack.

Avoid injury! Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

Lowering Bench Seat with Fold Down Rack

MXT013629-UN-11MAY15

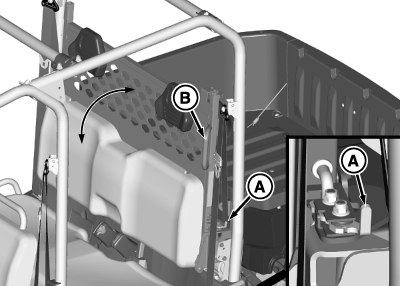

1. Push latch lever (A) inward and use handle (B) to lower seat.

Using Cargo Rack

Avoid injury! Riders can fall off and be injured or killed. Never carry riders in or on an attachment.

Avoid damage! Do not allow load to exceed width of fold-down rack and machine. Do not load cargo rack beyond weight capacity of 90 kg (200 lb).

1.
   MXT013631-UN-27MAR15

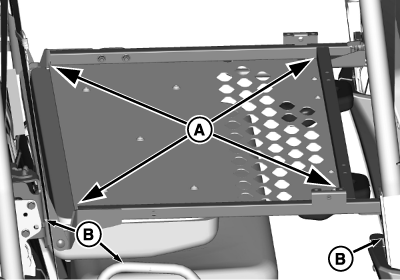

   Arrange load so the weight is centered over the main cargo area (A).

---




2. Secure the load to the tie-downs (B) on both sides in a safe and secure manner.

Raising Bench Seat with Fold Down Rack

1.
   MXT017462-UN-08SEP16

   Remove load from cargo rack.

---

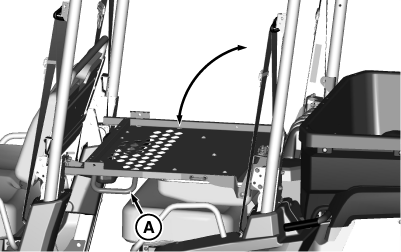

2. Raise seat and cargo rack using handle (A).

3.
   MXT017463-UN-08SEP16

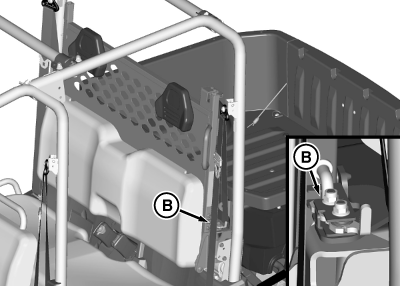

   Raise assembly until latch (B) secures cargo rack in raised position.

---
