Lifting Machine

1. Park the machine safely. (See Parking Safely in the SAFETY section.)

2. Avoid injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.
   • Lower machine onto jack stands or other stable supports and block wheels before servicing.



   Remove all attachments before lifting machine.

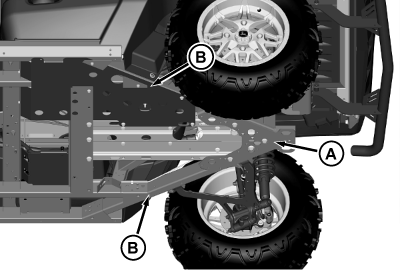

   MXT020156-UN-18MAY17

   Your machine model may not be shown, but jack locations are as shown.

   Safely lift rear of the machine at the frame point (A).

---




3. Place jack stands or other stable supports under frame locations (B).

4. To avoid movement of the machine when only lifting rear of machine, block front wheels remaining on ground.

5.

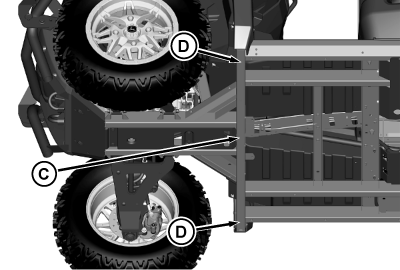

   MXT020157-UN-18MAY17

   Your machine model may not be shown, but jack locations are as shown.

   Safely lift front of the machine at the frame point (C). Place jack stands or other stable supports under frame locations (D).

---




6. To avoid movement of the machine when only lifting front of machine, block rear wheels remaining on ground.

7. To lower the machine, lift front and/or rear of machine. Remove jack stands or supports and lower machine.
