Checking and Replacing Fuses

Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amperage rating.

1. Park the machine safely. (See Parking Safely in SAFETY.)

2.
   MXT020164-UN-23MAY17

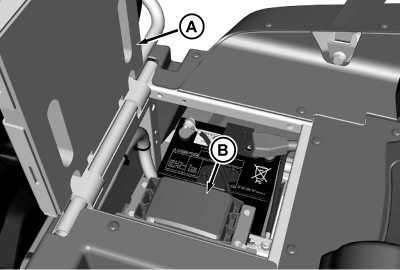

   Tilt seat (A) forward.

---




3. Remove cover (B).

4.
   MXT020163-UN-23MAY17

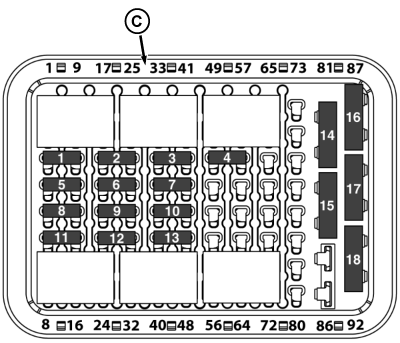

   590M fuse/relay block shown.

   Pull fuse from the fuse block (C) under seat.

---




5. Fuse identification:

   Position	Circuit	Fuse Size
   1	Key Switch	15 A
   2	Fuel Pump	15 A
   3	Engine Control Unit	15 A
   4	Diagnostic Port	5 A
   5	Main Engine	20 A
   6	Key Switch Relay	15 A
   7	Headlights	10 A
   8	Starter	15 A
   9	Instrument Cluster Control	20 A
   10	Flasher Module	10 A
   11	Brake Light	10 A
   12	Power Port	10 A
   13	Accessory	20 A
   14	Rear Power/Box Lift	40 A
   15	Front Power	40 A
   16	Radiator Fan	15 A
   17	Switch Bank	40 A
   18	EPAS	35 A

6.
   MXT020165-UN-23MAY17

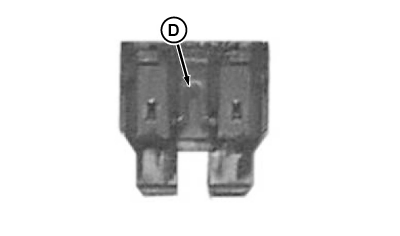

   Check visually for broken filament at location (D) in fuse.

---




7. Push new fuse of the correct amperage rating into proper position in the fuse block.

8. Install fuse block cover and lower seat.
