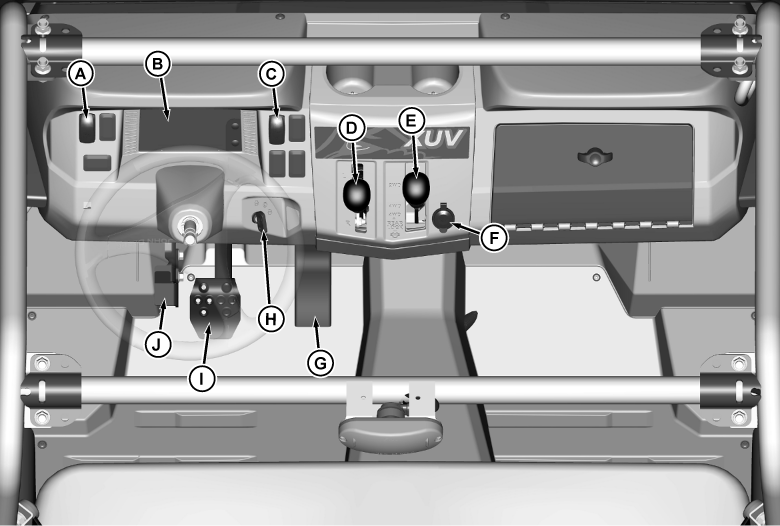

Operator Station Controls

MXT020170-UN-23MAY17

Some controls may not be installed on your machine.

A - Cargo Box Power Lift Switch
B - Instrument Panel
C - Headlight Switch
D - Transaxle Shift Lever
E - 2WD/4WD Lever
F - 12V DC Accessory Outlet
G - Accelerator Pedal
H - Ignition Key Switch
I - Brake Pedal
J - Park Brake Pedal
