Light Kits


Adjusting Lights

  1. Adjust light direction:

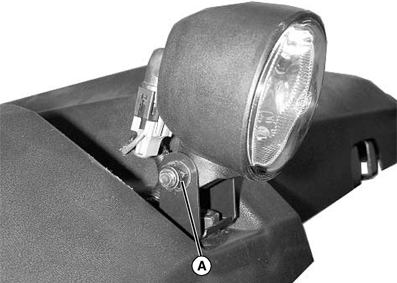

    MXAL47322
    MXAL47322-UN-16APR13

  • Type A - Loosen locknut (A) on carriage bolt and direct light where needed. Tighten locknut to secure in position.

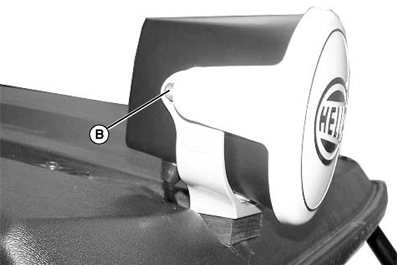

MXAL47323
MXAL47323-UN-16APR13

  • Type B - Loosen two hex head bolts (B) on light and direct light where needed. Tighten both hex head bolts to secure in position.

Replacing Fuses

  1. Open hood and remove storage tray.

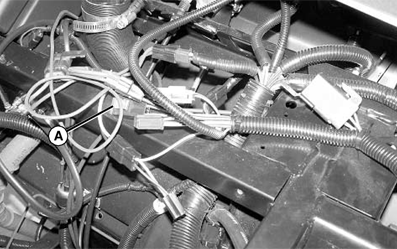

  2. MXAL47324
    MXAL47324-UN-16APR13

    Change 25 amp fuse (A) on wiring harness.

BB87125,0000D73-19-20130424
