Replacing Tail Light Bulb

1. Park the machine safely. (See Parking Safely in SAFETY.)

2.

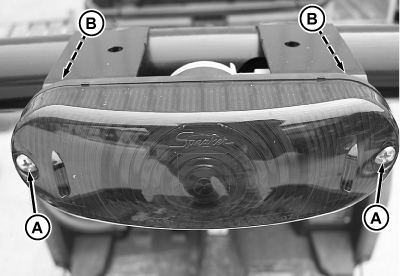

   MXT020154-UN-17MAY17

   Remove screws (A), nuts (B), and tail light lens.

---




3.

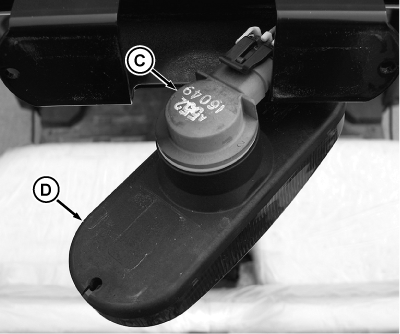

   MXT019090-UN-25AUG16

   Rotate bulb socket (C) 1/8 of a turn counterclockwise and remove socket from the bracket (D).

---




4.

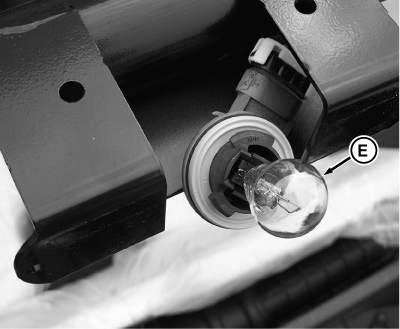

   MXT019091-UN-25AUG16

   Pull bulb (E) outward slightly. Discard the bulb.

---




5. Install new bulb and test function.

6. Install lens.
