Removing and Installing Cargo Box

Removing Cargo Box

Avoid injury!

• Do not attempt removal of the cargo box without using the latch support.
• Empty all material from the cargo box before removing.

1. Empty the cargo box.

2. Park the machine safely. (See Parking Safely in SAFETY.)

3.
   MXT012776-UN-19NOV14

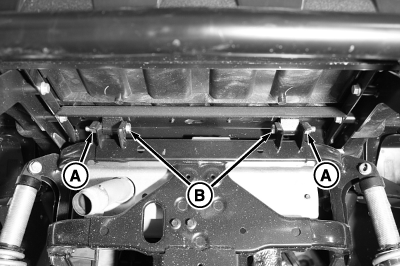

   Remove nuts (A) from bolts (B).

---




4. Remove bolts (B).

5. Avoid injury! Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install, or remove component or attachment.


   MXAL45784-UN-09APR13

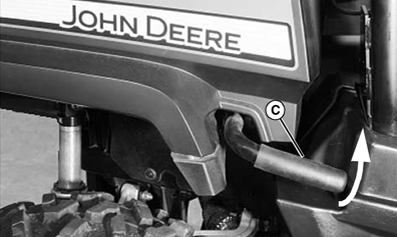

   Rotate cargo box latch handle (C) upwards to release latches, and lift cargo box from machine.

---

Installing Cargo Box

1. Avoid injury! Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install or remove component or attachment.


   MXAL45785-UN-09APR13

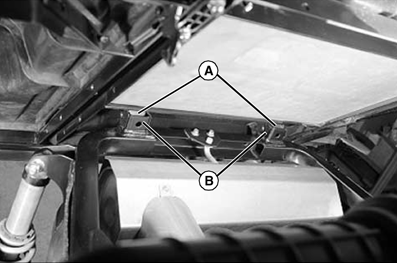

   Install cargo box to machine, fitting cargo box lugs (A) to frame brackets (B)

---




2. Lower cargo box to latched position.

3.
   MXT012777-UN-19NOV14

   Align hinges. Install bolts (C) and secure with nuts (D).

---
